Superglide
2 ®
- Patent #7971694

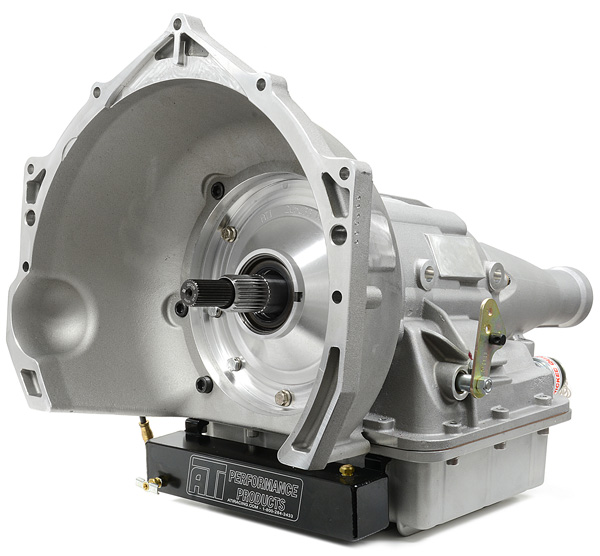

ATI's new Superglide is the strongest Powerglide on
the market today! For use in high horsepower race
cars, pullers and monster trucks, the SuperGlide is
the ultimate in reliability! Features include the ATI
SuperCase® & Tailhousing, ATI Billet Aluminum
Super Pump, Vasco Gear Sets with custom Turbo Sun Gear,
Compu-Flow Transbrake, patented ATI Ringless Super Shaft,
Billet Dual Ring Servo & Cover, Deep Aluminum Pan,
Comp Friction Lined Band and High Performance Gaskets
and Seals. Available in 28" and 18" lengths.
|
|
|
| |
| Superglide
2 Powerglide Transmission |
Max HP
2,400 HP
Specs
• 1.64 or 1.80 Vasco Gear Set
• Precision-balanced, new 4340 Carrier & Output Shaft
• Exclusive 30 Spline Clutch Hub and Input Sun Gear
• 1” Ringless Vasco Input Shaft
• ATI SFI 4.1 /30.1 SuperCase & Bell
• 10 Clutch High Gear Drum w/Premium Frictions
• 5 Reverse Clutches
• New HD 4140 Band Adjuster
• ATI’s Extra-Wide Super Band with Competition Lining
• Aluminum Super Pump w/bolt-in Stator
for Ringless Shaft
• Wicked Quick Billet Alum Valve Body
• Billet Twin Seal Servo w/ Gapless Rings and ATI Cover
• Deep Aluminum Cast Pan
• Lokar Direct Mount Dipstick
• Integral Fluid Catch Can
• High Flow 727 Dacron Filter System
• -6 AN Fittings, standard
• Multi Lever to fit various shifters
• Case to Bell Stud Kit
• Roller Bearing in case for Output Shaft
• Billet Aluminum Roller Bearing Governor Support
• Heavy Duty Extension Housing with
Snap-Ringed Bearing and Seal |
|
|
| Description |
Length |
Gear
Ratio |
Gear
Material |
Max
HP Rating |
Part
Number |
Price |
| ATI SUPERGLIDE 2 |
28" |
1.80 |
VASCO |
2400
HP |
201452 |
$6,395 |
| ATI SUPERGLIDE 2 - SHORTY |
18" |
1.80 |
VASCO |
2400
HP |
201462 |
$6,395 |
| ATI SUPERGLIDE 2 |
28" |
1.64 |
VASCO |
2400
HP |
201456 |
$6,395 |
| ATI SUPERGLIDE 2 - SHORTY |
18" |
1.64 |
VASCO |
2400
HP |
201457 |
$6,395 |
ATI Gear Set Ratios are weight restricted.
ATI does not recommend 1.80 ratio gears for use above 2,800
horsepower.
Add a Fuel & Blown or Outlaw® Converter
| Description |
Part
# |
Price |
| 9" FUEL & BLOWN CONVERTER |
408930 |
$1,274.00 |
| 10" OUTLAW CONVERTER |
408421 |
$1,670.00 |
|
|
Add a Bolt-Together Outlaw® Converter
| Description |
Part
# |
Price |
| 9" BOLT TOGETHER CONVERTER |
408950 |
$1,870.00 |
| 10" BOLT TOGETHER CONVERTER |
408450 |
$2,670.00 |
|
 |
SuperCase Bell Packages
| SB Mopar |
202800 |
$799 |
| SB Mopar, Gen III HEMI |
202801 |
$739 |
| SB Mopar, Gen III HEMI - Dual Starter Pockets |
202805 |
$799 |
| BB Mopar, 6-Bolt |
202802 |
$689 |
| BB Mopar, 8-Bolt |
202803 |
$739 |
| SB Ford, 157T |
202810 |
$699 |
| SB Ford, 164T |
202811 |
$699 |
| BB Ford, 164T INT |
202813 |
$689 |
| SB Ford, Mod Motor |
202812 |
$729 |
| Ford 5.0L Coyote |
202815 |
$729 |
| Ford, 7.3L Godzilla |
202816 |
$729 |
| Toyota Supra - Requires custom converter |
202820 |
$689 |
|
| CRITICAL
LOW GEAR BAND ADJUSTMENT
- To keep your ATI Steel Drum Powerglide trans in good
working order, you must keep the band adjustment in
check. 80 inch lbs - back out 3.5 turns! For Superglide®
Transmissions: Check and adjust the band after each
pass (especially important when brand new). Once the
band stops changing then check at the end of each race
day or after 8 rounds. This will vary with HP as Superglide
units are rated from 2000 to 3500 HP. Just remember
five minutes of maintenance here will help the low gear
band do its job. Call a Sales Technician for more info. |
|
|
|
|
