Bolt Together Racing Torque Converters
-
8" & 9" with Lock-Up option
ATI now offers Bolt-Together and Lock-Up versions of their popular Treemaster® and
MRT Converters. For racers who frequently send out their converters for stall changes
or overhauls, they will save both time and money by having the option to service and
adjust the converter themselves – at home or at the track! Each unit comes with a billet aluminum rear cover, stator, brazed turbine and pump half. ATI offers several different stator options specific to converter size. 8” pumps are adjustable and ATI offers pump
options for 9” & 10” converters allowing for a multitude of possible combinations. ATI also offers a range of Lock-Up Bolt-Together Converters that provide 0% slip, minimum ET and maximum MPH!
• Double O-ring seals
• Requires just half the assembly bolts of other bolt
together converters keeping the largest diameter of
the converter as light as possible
• Average Weight savings on an 8" unit is 2.5 lbs, and
4.3 lbs on a 10" unit |
GM Applications
| Description |
8" |
9" |
Part
# |
Price |
Part
# |
Price |
| Bolt Together |
408850 |
$1895 |
408950 |
$1995 |
Bolt Together
with Lock-Up |
408851 |
$2895 |
408951 |
$2995 |
TF727 Applications
| Description |
8" |
9" |
Part
# |
Price |
Part
# |
Price |

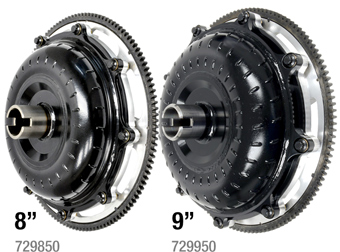

| Bolt Together |
729850 |
$1995 |
729950 |
$2095 |
408850 ONLY comes standard w/Spring & Roller Sprag
• DEDUCT $100 for Spragless option
• ADD $100 for Fuel Element Sprag
• ADD $175 for Mechanical Diode
408851, 408950, 408951, 729850 & 729950 come standard w/Fuel Element Sprag
• DEDUCT $100 for Spragless option
• ADD $175 for Mechanical Diode
|
|
 |
10" and 10.5" Lock-Up Outlaw® Drag Racing Torque
Converters
ATI's Outlaw® Bolt
Together Lock Up Converter
will provide 0% slip all the way up
to 4500HP! Lock up in
just .03 econds
when used with
ATI’s SuperCase
and Pump. Both converters feature
5-axis billet aluminum back cover,
dual o-ring sealing, optional Nissan
style pump and multiple stator
designs. A bronze pilot option is
also available.
• Up to 6 large clutches
• 6 stator designs
• Okay to progressively lock-up
• Through-bolt design |
• Dual O-Ring Sealing
• Nissan Style Pump
• 5-Axis Billet Aluminum
Back Cover |
All Bolt-Together & Lock-Up Outlaw Converters come standard with Fuel Element
Sprag. Titanium studs and nuts available.
DEDUCT $100 for Spragless option
ADD $275 for Mechanical Diode
|
|
|
|
| Description |
10" |
10.5" |
Part # |
Price |
Part # |
Price |
| OUTLAW® - BOLT TOGETHER |
408450 |
$2995.00 |
408435 |
$3095.00 |
| OUTLAW® - BOLT TOGETHER - LOCK UP
- RATED TO 4500 HP FOR 0% SLIP |
408451 |
$4495.00 |
-- |
-- |
| OUTLAW® - BOLT TOGETHER - NON-LOCK-UP / LOCK-UP HEIGHT |
-- |
-- |
408431 |
$3449.00 |
| Superglide 4 & Big Shaft T400 |
| WELDED OUTLAW® FOR SG4 & BIG SHAFT 400 - LOCK UP
- RATED TO 2800 HP FOR 0% SLIP |
-- |
-- |
408422LU |
$3495.00 |
| OUTLAW® FOR SG4 & BIG SHAFT 400 - LOCK UP - BOLT TOGETHER |
-- |
-- |
408430LU |
$4595.00 |
Pad Spacers for Bolt Together Converters (Requires 6 per converter)
| Application |
Part
# |
Price |
| .750" THICK SPACER |
451900A |
$11.39 EA |
| .500" THICK SPACER |
451900B |
$9.46 EA |
| .250" THICK SPACER |
451900C |
$8.50 EA |
| TOYOTA 1FZ -
.745" THICK SPACER |
451900D |
$14.95 EA |
| VIPER '05-'17 -
1.88" THICK SPACER |
451900E |
$16.02 EA |
|
|
Friction Plates for Bolt Together Cover Assemblies
| Application |
Part
# |
Price |
| GREEN - LOCK UP CLUTCH |
|
$13.34 |
| BLUE - LOCK UP CLUTCH |
451924B |
$13.34 |
| BLACK - LOCK UP CLUTCH - SOFT APPLY |
|
$17.95 |
|
|
Bolt-Together Converter Builder Kits
ATI's new Bolt Together Converter Builder Kits are available for 8”, 9”, 10” and
10.5” Bolt Together and Bolt Together Lock Up Converters.
If you have a loca
converter builder you trust, this may be the option for you! Each kit gives your builder the ability to convert your favorite xisting welded
converter to a Bolt-Together or Bolt-Together Lock Up unit for ease of
maintenance and stall changes. It also provides substantail weight savings
over conventional welded torque converters. Kits include everything except the
converter core (stator, pump & turbine)
Average weight savings on a Bolt Together Converter over a conventional welded unit:
8” Converter - 2.5 LBS.
10” Converter - 4.3 LBS.
|
How to qualify for purchase
In order to purchase these builder kits, you must be a qualified performance business located at a commercial location. A business license and Tax ID number
are required. |
|
|
| Description |
8" |
9" |
10" |
10.5" |
Part
# |
Price |
Part
# |
Price |
Part
# |
Price |
Part
# |
Price |
| BOLT TOGETHER |
408850K |
$995.00 |
408950K |
$995.00 |
456805K |
$1099.00 |
456805K |
$1099.00 |
BOLT TOGETHER
LOCK-UP |
408851K |
$2253.89 |
408951K |
$2053.89 |
408451K |
$2455.16 |
408430K |
$2455.16 |
| Application |
Part # |
Price |
|
|
| O-RING FOR PUMP RING - OUTER - 8" |
|
$15.95 |
| O-RING FOR PUMP RING - INNER - 8" |
970005 |
$11.95 |
| * Not for individual resale |
|
|
|
