Y-Body, F-Body, & C/K-Body Serpentine Conversion Kits for LS1 & LS2 Engines |
|
|
|
LSX
Serpentine Belt Conversion Kits
Everything you need to convert your stock 6 rib serpentine
belt to an 8 or 10 rib! If you are requesting more boost,
causing your 6 rib belt to slip, these kits are for you.
The wider 8 rib belt gives you more belt surface which
can create more boost without the slippage. ATI also offers
a 10 rib kit for those who need extra boost!
Add a reusable Crank Pink Drill Kit #918993 from ATI and pin your crank the right way available for the discounted price of $65 when you purchase any 8 or 10 rib conversion kit.

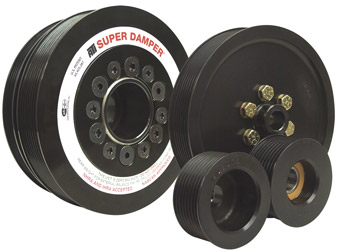

Y-Body Conversion Kits For
LS1, LS2, LS3 & LS6
Includes damper, power steering, alternator & tensioner
pulleys. May require water pump pulley for 10 rib and
larger applications.
| Applications |
Part
# |
Price |
8 Rib Serpentine
• OEM – 7.425” Overall Dia, uses
shell assy, 917025
• 9% OD – 7.960”
Overall Dia, uses shell assy, 917107
•
12% OD – 8.235” Overall Dia, uses shell
assy, 917108 |
917346 |
$1143.90 |
Z-Body 2010-2015 Camaro Conversion Kits
For LS3 [1]
Kit includes damper assembly, power steering pulley, alt
pulley, water pump pulley, tensioner pulley, idler pulleys.
| Applications |
Part
# |
Price |
10 RIB SERPENTINE - SPECIFY – OEM, 4% OD, 7% OD
|
917351 |
$1335.41 |
OEM – 7.53” DRIVE
OD, USES SHELL ASSY: 917034X
4% OD – 7.95” DRIVE OD, USES SHELL ASSY:
917091
7% OD – 8.19” DRIVE OD, USES SHELL ASSY:
917094 |
|
|
Accessory
Pulleys for 2010-2015 LS3 Camaro & LS Based Trucks
| Replace your standard A/C pulley with an underdrive
3” 4-groove aluminum pulley or an aluminum
31 tooth 8mm HTD drive pulley. Now you can
easily drive a relocated alternator, vacuum pump
or a dry sump pump with your ATI Super Damper.
It’s as easy as specifying the rear pulley at the
time of your order. Available for any damper using
916430M or 916430MK hub. |
SERPENTINE HTD |
* Price is $85 for either pulley when purchased WITH your ATI Super Damper
| Description |
Part
# |
Price |
ALUMINUM 4 GROOVE SERPENTINE PULLEY
|
916165 |
$118.53* |
| ALUMINUM 8MM HTD DRIVE PULLEY |
916166 |
$158.90* |
Cadillac CTS-V Conversion Kits
for ’04 - ’07 [2]
Kit includes damper assembly, power steering pulley, alt
pulley, tensioner pulley.
| Applications |
Part
# |
Price |
8 RIB SERPENTINE
• OEM – 7.425” Overall Dia, uses
shell assy, 917025
• 9% OD – 7.960” Overall Dia,
uses shell assy, 917107
• 12% OD– 8.235” Overall Dia,
uses shell assy, 917108
|
917350 |
$1107 |
LS Truck Conversion Kits For LSX 4.8 / 5.3 / 6.0)
[2]
Kits include damper assembly, power steering pulley, alt
pulley, water pump pulley, tensioner pulley.
| Applications |
Part
# |
Price |
8 RIB SERPENTINE
• OEM – 7.425” Overall Dia. uses shell assy, 917025
• 6% OD – 7.960” Overall Dia,
uses shell assy, 917107
• 10% OD – 8.235” Overall Dia,
uses shell assy, 917108
* Note! Includes 4” overall length water pump
pulley. May need modofying by installer for some
applications or substitute 916187WPP-A (2.80”)
or 916187WPP-B (3.05”) at time of order.
|
917339* |
$1213.64 |
10 RIB SERPENTINE
• OEM – 7.530” Overall Dia, uses
shell assy, 917034X
• 4% OD – 7.950” Overall Dia,
uses shell assy, 917091
• 6% OD – 8.190” Overall Dia,
uses shell assy, 917094
|
917338 |
$1244.76 |
[1] - LPE Note - To achieve full effectiveness, these
kits require a high strength tensioner, bracket and
belt available from Lingenfelter Performance Engineering.
To be used with the Magnuson style supercharger.
[2] - For optional shell assemblies with OD 10 rib serpentine
applications, use the following shells or consult a
technician for more information.
4% OD – 7.95” Drive od, uses shell assy:
917091
7% OD – 8.19” Drive od, uses shell assy:
917094
Note: Many blower drive kits supply
a V-belt pulley that bolts to the stock damper with
3 bolts and serves as an adapter to bolt on the 6 bolt
blower pulley. While this system has 6 bolts driving
the blower pulley, the 6 bolt pulley is driven to the
damper with just 3 bolts. Like most blower pulleys,
the ATI true blower dampers have 6 bolt holes on the
Chrysler bolt circle. It is recommended that the adapter
pulley be drilled through 29/64 so that it is sandwiched
between the blower pulley and the ATI damper with all
6 bolts.
Water Pump Pulleys
Wide Aluminum water pump pulley for 10-12 rib
belts
| Applications |
Overall
Length |
Shaft
Size |
Part
# |
Price |
LS1 - TRUCK / GTO
|
4.00"
OAL |
0.7465"
|
916187WPP |
$199.82 |
| LS - TRUCK |
2.80"
OAL |
0.7465" |
916187WPP-A |
$221.60 |
| LSX / VORTEC |
3.05"
OAL |
0.7465" |
916187WPP-B |
$221.60 |
| LS3 - Z BODY |
2.39"
OAL |
0.6250" |
916218 |
$199.82 |
LS Idler Pulleys
| Applications |
Part
# |
Price |
76mm
|
916208-76 |
$133.71 |
| 90mm |
916208 |
$143.06 |
| 100mm |
916208-100 |
$143.06 |
10 Rib Pulleys
| Applications |
Drive Dia |
Part
# |
Price |
LS SERIES ALTERNATOR (2.62 OD)
|
2.625" |
916185 |
$91.94 |
| LS TRUCK ALTERNATOR (2.62 OD) |
2.625" |
916185M |
$106.86 |
| TENSIONER PULLEY (DOUBLE BEARING) |
2.640" |
916186 |
$119.67 |
| LS SERIES POWER STEERING PULLEY |
6.330" |
916187 |
$232.85 |
| LS TRUCK POWER STEERING PULLEY |
6.370" |
916187T |
$285.50 |
|
