This ultra heavy-duty lathe is ideally suited for
torque converter rebuild work. When used as a dedicated
cutting unit, there’s no need to clean up
and prepare for other machining operations - which
saves you time and money!
Features:
• Tooled specifically for cutting torque converters
open • Ultra heavy-duty for brute strength
and timeless durability • No clean up
necessary • Machine mounted air ram holds
converter securely
Shipping Info:
7,000 lbs - 48” x 60” x 96” Power Requirements: 230V - 60Hz
- 3 Ø - 30A

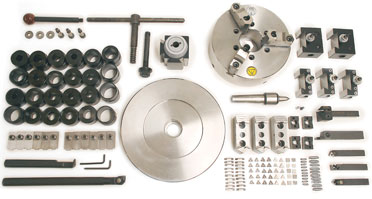

This tooling
package comes included with the ATI Cut-Open Lathe,
but is also available for purchase separately for
those customers with their own lathe.
Faceplate
- Specify spindle nose
Bushing Retaining Screw
Ford Cover Stud Spacers
1/4-20 x 1” Socket Head Cap Screws
Hex Wrench
Air Cylinder
Air Cylinder Adapter
Extension Rod for Air Cylinder
Extension Rod Bushing Adapter
Pusher w/bearing & O-ring, 1.290
x 2”
Pusher w/bearing & O-ring, 1.290
x 3/4”
Pusher w/bearing & O-ring, 1.625
x 2”
Pusher w/bearing & O-ring, 1.085
x 2”
Pusher w/bearing & O-ring, 1.085
x 1”
Air filter, lubricator, regulator, mounting
bracket and label
Air Control Valve, 4 way 10-32
x 1-1/4” socket head cap
screws
Elbow swivel, 1/8” MNPT x 1/4”
plastic tube
Male Connectors: 1/4” NPT x 1/4”
plastic tube
Elbow, 1/4” MNPT x1/4” plastic
tube
Orificed Plug: 1/8” NPT
20’ 1/4” air line
Bushing Application Chart
Installation & Pneumatic Drawing
Spindle Nose Modification Drawing
Cutting Shank
Insert - 3/8"
Bushings
* Mounted on Turret lathe if installed by ATI
Description
Part
No.
Price
Cut
Open Lathe & Tooling Package Tooling
Package ONLY
