Home > Products > Transmissions > Transmission Coolers

Transmission Coolers


Cooler Pressure Dump Kits
A converter pressure dump solenoid allows the transmission to bleed off the volume and pressure of the fluid going to the converter in which loosens the converter. We offer an internal and external dump to match up with your needs. Our external dump moves the most amount of fluid and is used on turbo cars for the starting line to help come up on the converter and the internal dump is used once the car leave the line to help with traction. They can also be used on marginal track surfaces.  These are just two of the ways to use these tuning aids. We recommend having both installed for the ultimate amount of tuning.


Part #
Price
Purchase

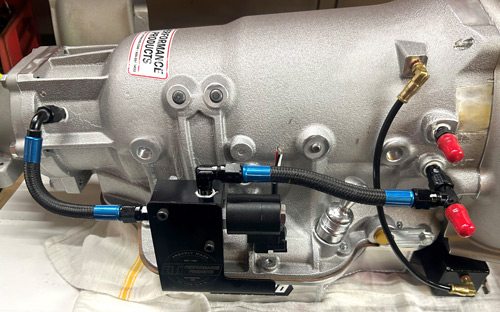

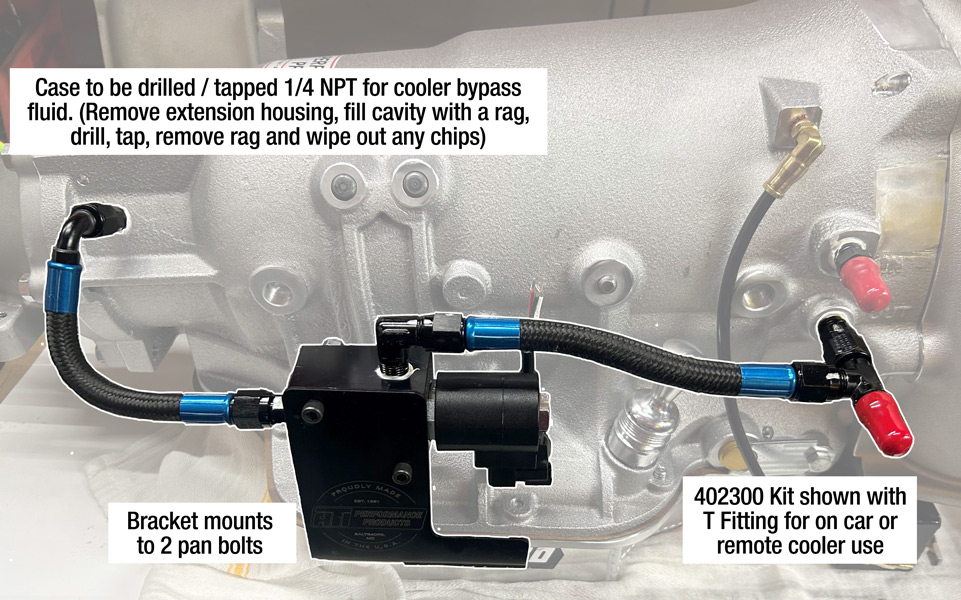

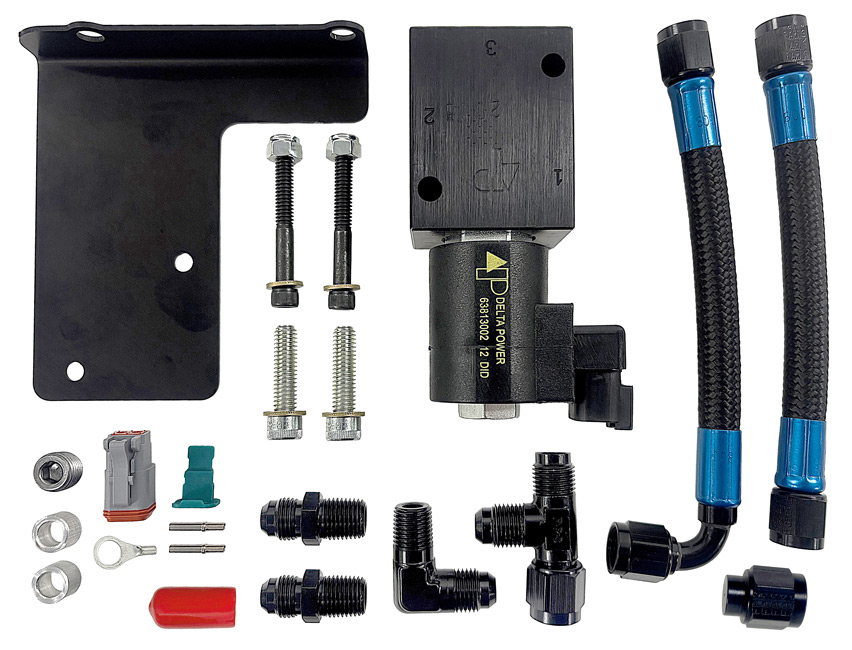

T400 EXTERNAL HIGH FLOW COOLER PRESSURE DUMP KIT -- STD COOLER LOCATION W/ EXT COOLER - 1/4 NPT COOLER FITTING SIZE
$395.95
AT CONNECTOR KIT - 2 WIRE - For #402301 Big Solenoid Kit
$12.95

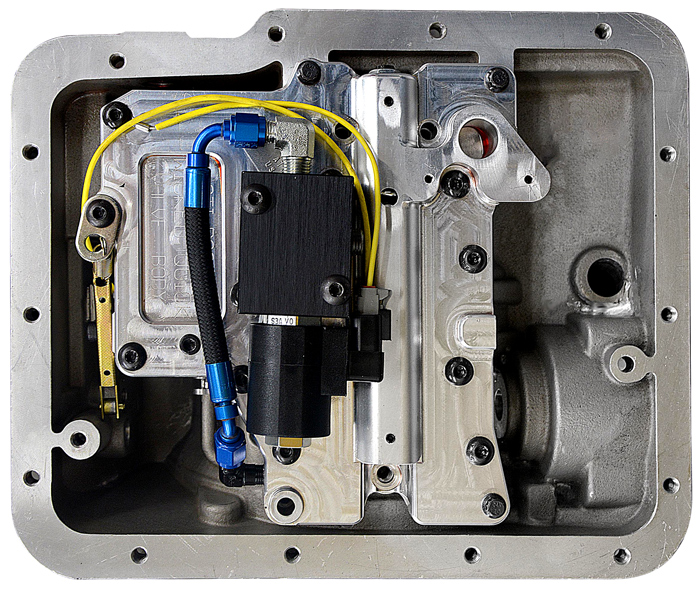

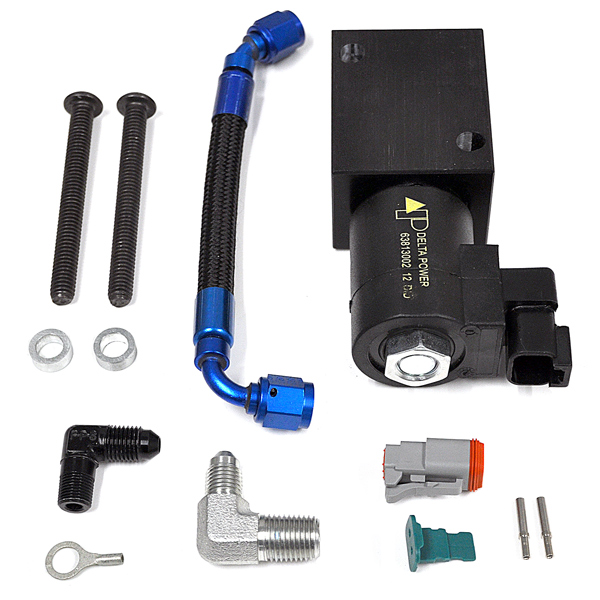

T400 INTERNAL HIGH FLOW COOLER PRESSURE DUMP KIT - BIG SOLENOID
$359.00
POWERGLIDE EXTERNAL COOLER DUMP KIT
$359.47


ATI Powerglide Cooler Pressue Dump - Internal and External

ELECTRA COOL - Derale® Transmission Cooler with Integral Fan

The Electra-cool Remote Cooler combines a copper/aluminum core with a high flow Tornado electric fan for maximum cooling in any environment. 10” 650 CFM fan, AN-6 inlets; hose barb adapters are included if not using AN hose.

Dimensions: 10” x 12.5 x 4”


Part #
Price
Purchase
“ELECTRA COOL” TRANS COOLER WITH FAN
$185.00

ATOMIC COOL - Derale® Transmission Cooler with Integral Fan

The Atomic-cool Remote Cooler provides the largest temperature drop of any fan mounted cooler. This high efficiency fin and plate design maximizes heat dissipation and minimizes oil pressure drop, especially important on late model
electronic overdrive transmissions. 8” 400 CFM fan, AN-6 inlets; hose barb adapters are included if not using AN hose.

Dimensions: 8.75” x 12.75" x 4.25”


Part #
Price
Purchase
“ATOMIC COOL” TRANS COOLER WITH FAN
$224.00

Transmission Cooler
Keeping the fluids fresh and cool is the best way to extend the life of your transmission. When transmission fluid gets too hot, it breaks down, decreasing the life of the fluid as well as the seals, bearings and moving parts. Install a transmission cooler from ATI and prevent costly repairs. Complete with hardware. (3/8” pipe thread tube ends will accept supplied hose barbs or AN fittings.)

Dimensions: 18 x 7 " x 1.5


Part #
Price
Purchase
TRANS COOLER WITH THREADED CONNECTORS
$122.57

ChipFab Transmission Pit Cooler
Drops fluid temperatures efficiently and in the most simple manner possible!

  • Drops fluid temperatures down to ambient in minutes, between rounds
  • Keeps torque converter functioning consistent
  • All aluminum lightweight frame for portability at the track
  • Digital transmission temperature gauge
  • High temperature gear pump with inline filter and larger cooler fan
  • Comes with 4.5' -6AN lines and 2 sets of quick disconnect fittings
  • Runs off single 120v plug
  • Recommended changing filter after roughly every 50 runs
  • Made in the USA!


Part #
Price Purchase
TRANSMISSION PIT COOLER 925513 $1750


Transmission Cooler Installation Kit
10 feet of transmission cooler hose, 2 barbed stock transmission fittings, 2 barbed stock transmission fittings, 2 barbed AN-6 fittings for the ATI Transmission Cooler with Integral Fan and 4 worm drive hose clamps.



Part #
Price
Purchase
COOLER INSTALLATION KIT - TRANS COOLER - DASH 6 - STREET ROD USE
$64.00
Cooler Fan Thermal Switch
Automatic 180°F electric cooler tan thermal switch. Includes integral AN -6 fittings / hose barb adapters.


Part #
Price
Purchase
FITTING - COOLER - THERMOSTAT - INLINE - TRANS FAN - DASH 6 AN FITTINGS
$31.99

Quick Disconnect Cooler Lines
These quick disconnect cooler lines feature fluid fittings that exceed flow requirements while connecting and disconnecting with 100% accuracy. Fittings are made from lightweight anodized aluminum, with fluorocarbon seals and are 100% leak tested. The ribbed collar provides slip proof use and connects by hand in seconds. Note: Some T-400 and 700R4 transmissions have straight threads. While these kits may be used, do not overtighten as the case may crack!



Part #
Price
Purchase
SERIES 2000 - 1/8" & 1/4" NPT -6 AN - 14-1/8" LONG
$139.15
SERIES 3000 - 1/4" NPT -6 AN - HIGH FLOW (250 TO 300 PSI) - 14-5/16" LONG
$139.15
1/4" NPT 90° -6 HOSE TO STRAIGHT - FITS COPO SPEC T400
$143.17
Dust Cover Plug Fitting


Part #
Price
Purchase
JIFFY TITE - ALUMINUM SOLID MALE PLUG -
SERIES 2000
$7.98
JIFFY TITE - ALUMINUM SOLID MALE PLUG -
SERIES 3000
$7.98

T400 External Case Cooling Hardware Kit
For remote cooling in the pits!

Part #
Price
Purchase
T400 FITTING KIT - EXTERNAL - QUICK DISCONNECT - REMOTE COOLER
$144.02


  Individual Components of 925190
Part No.
Price
  FITTING - JIFFY TITE - MALE PLUG - TO 1/4 NPT - SERIES 3000
$39.00
  FITTING - JIFFY TITE - FEMALE SOCKET - TO 1/4 NPT - SERIES 3000
$50.00
  JIFFY TITE - ALUMINUM SOLID MALE PLUG - SERIES 3000
$7.98
  FITTING - 90 DEG MALE ELBOW - DASH 6 X 1/4 NPT
$8.95
  RUBBER CAP - JIFFY TITE - FOR MALE PLUG - SERIES 3000
$7.20




Powerglide Case Fittings
AN -6 Case Cooler Line Fittings

For Powerglide and SuperCase applications



Part #
Price
Purchase
FITTING - COOLER - 1/8 NPT MALE TO DASH 6 MALE AN - OEM PG CASE 960001
$7.49
FITTING - COOLER - 1/4 NPT MALE TO DASH 6 MALE AN - SUPERCASE PG 400 960002
$8.95




Part #
Price
Purchase
FITTING - COOLER - 1/4 NPT MALE TO (2) DASH 6 MALE AN - TEE - SUPER CASE - PG - 400 960013
$9.22
T350, T400, 700R4 and most 4L60E, 4L85E
Transmission Cooler Line Fittings



Part #
Price
Purchase
FITTING - COOLER - NYLON WASHER SET - DASH 6 AN TO 1/4-18 - STRAIGHT PIPE - 400 925137
$29.95
FITTING - COOLER - NYLON WASHER SET - DASH 8 AN TO 1/4-18 - STRAIGHT PIPE - 400 925138
$29.95
HOSE ASSEMBLY - DASH 6 - FEMALE TO FEMALE - SIDE OILING - 400
$122.57
FITTING SET (2) - COOLER LINE - DASH 6 AN TO 9/16-18 - SIDE AND COOLER - 4L80E 4L85E
$24.72
FITTING - COOLER - SUPER CASE 400 AND 4L80E SIDE OILING - DASH 6 - 4L85E 925141
$14.95
FITTING - FOR DERALE COOLER - 5/8-18 W/ O-RING TO DASH 8 - STOCK DASH 6 925145
$19.52

Case Cooler Line Manifold Adapters
Fits Late Model GM 6L80E, 6L80E & 8L90E Transmissions


Part #
Price
Purchase
FITTING BLOCK - MANIFOLD ADAPTER W/ 2 - DASH 6 AN FITTINGS - 6L80E 6L90E 8L90E 925142
$54.85



Fits Late Model GM 6R80E & 10R80E Transmissions


Part #
Price
Purchase
FITTING BLOCK - MANIFOLD ADAPTER W/ 2 - DASH 8 AN FITTINGS - 6R80 10R80 925144 $79.95
Undersized Diameter Cooler Fitting


Part #
Price
Purchase
FITTING - 1/4 NPT MALE TO DASH 4 MALE AN 960012
$5.65

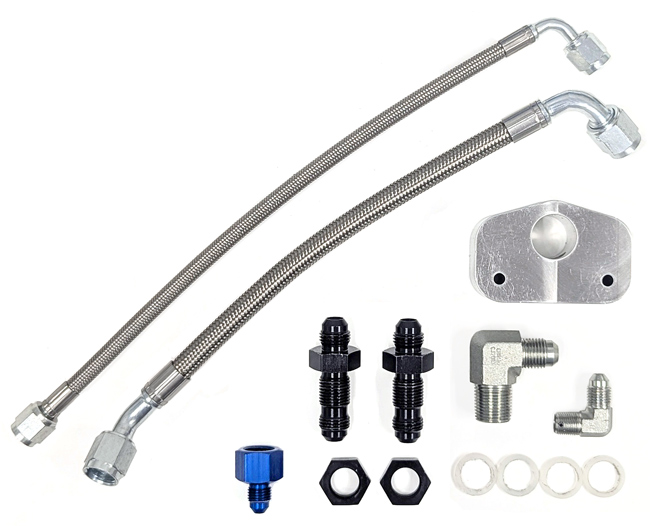

Powerglide External Cooler Pump System Plumbing Kit



Part #
Price
PG EXTERNAL COOLER PUMP PLUMBING KIT 925100
$275
