The SuperCase is an SFI certified transmission
case for Powerglide, Turbo 400 and Turbo 350 transmissions. The case, bellhousing,
and tailhousing are cast from 356T6 cast aluminum. Developed
to eliminate all weak points found in the original GM transmission
cases, the rugged ATI SuperCase and bell housing are SFI approved
for competition, and feature a steel safety inner liner that
weighs only 29 ounces—eliminating the need for any external
shields. In addition, the SuperCase features a removable bell
housing that bolts directly to the transmission case instead
of the pump bolt locations, and has been engineered to accept
all internal Powerglide, Turbo 400 or Turbo 350 components.
Shown with optional powdercoating & Ford Bell option on T400
Powerglide SuperCase & Bell Dimensions
Bell Housing
Part #
Bell Depth
Length of trans with SuperCase
Bell to
Pad distance
CHEVY
200014
6.350"
28.000"
1.000"
SB FORD / 157 T FP
200018
6.150"
28.395"
0.800"
SB FORD / 164 T FP
200021
6.205"
27.855"
0.855"
BB FORD / 164 T FP
200025
6.460"
28.110"
1.110"
FORD MOD MOTOR
200007
6.520"
28.170"
1.170"
BB MOPAR
200016M
6.815"
28.465"
1.465"
TOYOTA
200028
6.745"
28.395"
1.395"
SuperCase
Weights (lbs)
Description
Weight
Description
Weight
PG Case, Liner, Hardware
18.5
Mopar Dual Starter Pocket
14.3
Chevy Bell
8
Mod Motor Bell
8.9
Heavy Duty Chevy Bell
11.5
5.0L Coyote Bell
8.9
Ford SB Bell 157
10
PA Adapter Plate
4
Ford SB Bell 164
11
JW Adapter Plate
4
Ford BB Bell
13
PA FE Bell
23
Mopar SB Bell
11
Toyota Bell
10.4
Mopar BB Bell
11
Chevy - SuperCase Packages sold seperately - as not Part of an ATI Tranmission Build
Applications
Part
#
Price

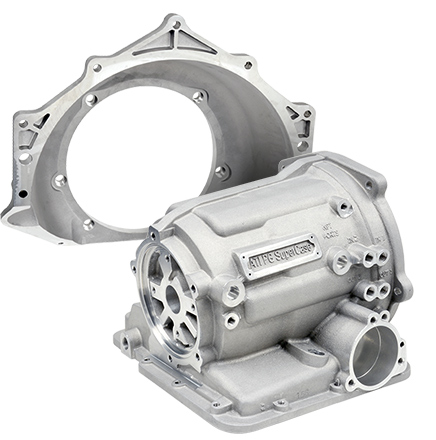

ATI SUPERCASE GEN 2 - PG - Chevy Bellhousing
and Transmission Case
200011-N
$1449
Toyota - SuperCase Packages sold seperately - as not Part of an ATI Tranmission Build
Applications
Part
#
Price
ATI SUPERCASE - Toyota Bellhousing Only
200028
$479.00
BOLT KIT - ATI Bellhousing
to Toyota Engine
950265
$14.95
Powerglide SFI SuperCase Components and Accessories
Applications
Part #
Price
ATI SUPERCASE - PG - Extension Housing
for standard PG Output for 1.500" Yoke
200031
$179.00

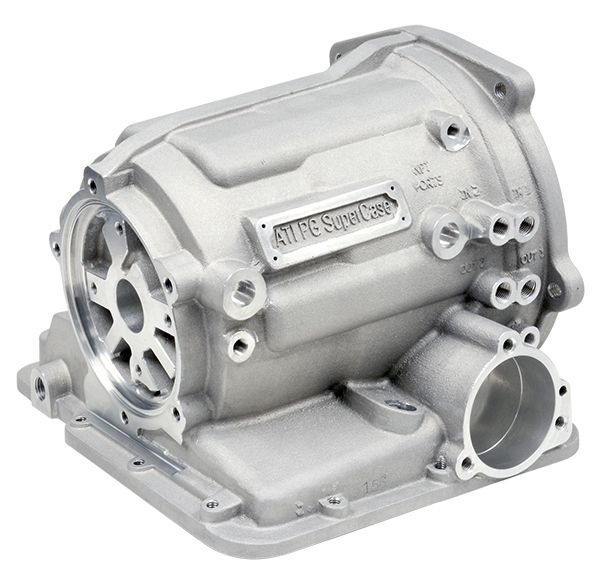

ATI SUPERCASE - PG - Gen 2 - Case Only - includes small parts
200013-N
$1109

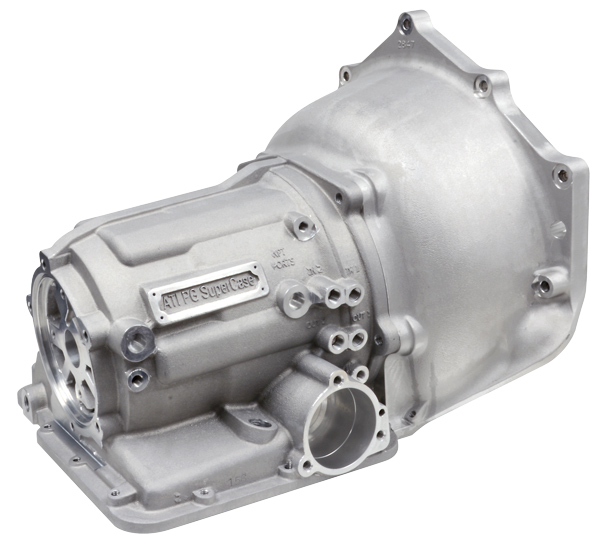

ATI SUPERCASE - PG - Gen 2- Chevy Bell
and Case with Bearing - PG Output size
200011B
$1469
ATI SUPERCASE - PG - Gen 2- Chevy Bell
and Case with Bearing - T400 Output size
200011B4
$1469
ATI SUPERCASE - PG - Gen 2 - Case Only - with
Bearing installed for PG Output - includes small parts
200013B-N
$1139
ATI SUPERCASE - PG - Gen 2 - Case Only - with
Bearing installed for T400 Output - includes small parts
200013BT4-N
$1139
ATI SCS-30 - PG - Installed on SuperCase
925000
$873.68
T400 SFI SuperCase Packages Components and Accessories
Description
Part #
Price
ATI T400 SUPERCASE - Chevy Bell and
Transmission Case
400011
$2295
ATI SUPERCASE - TH400 - Case Only - No Bell
400013
$1959
ATI SUPERCASE - TH400 - Lock-Up w/Sensor Ports - Case Only - No Bell
ATI SUPERCASE - BOLT KIT - ATI BELL
TO CASE - 6 BOLTS, 6 SERRATED WASHERS
950320
$11.95
ATI's T350 SuperCase with SFI Bell
and roller bearing extension housing
T350 SFI SuperCase
ATI's SFI Certified T350 SuperCase is cast in America and machined in-house! The T350 SuperCase features many upgrades to meet the high performance demands of current racers from bracket racers on up to late model Factory Stock cars!
356-T6 Permanent Mold Aluminum Casting meets SFI 4.1 - no shield or blanket required
CNC machined valve body passages yield extremely fast transbrake release and quicker shift times
Increased thickness extension housing and bell flange area to ward off breakage
Stronger internal lugs and more material to allow room for more clutches
Custom valve body passages can be made to order for builders with specific requirements
Band adjuster version for non-GM internal components
Retains OEM Governor cavity for auto shift applications
Also available with no Governor or Fwd band machine work
T350 SFI SuperCase Packages Components and Accessories
Description
Part #
Price
ATI T350 SFI SUPERCASE - Chevy Bell and
Case
350011
$1749.00
ATI T350 SFI SUPERCASE - Chevy Bell and
Case - Band Version
350111
$1739.00
ATI T350 SFI SUPERCASE - Chevy Bell and
Case - No governor support, no band
350011NG
$1739.00
ATI T350 SFI SUPERCASE - Case Only - NO BELL
350013
$1409.00
ATI T350 SFI SUPERCASE - Case Only - NO BELL - Band Version
350113
$1399.00
ATI T350 SFI SUPERCASE - Case Only - No governor support, no band
350013NG
$1399.00
ATI T350 Cast SFI Extension Housing with Bushing and T400 Output
351936
$199.00
ATI T350 Cast SFI Extension Housing with Roller Bearing and T400 Output
ATI's Direct Fit Bells feature a machined indicating
lip to ensure proper location on machined OEM cases
Direct Fit SFI Bell Housings
The perfect option for racers who
prefer to run an OEM case. These new
bellhousings are SFI 30.1 certified and are made from
356-T6 permanent mold cast aluminum. All ATI bellhousings are
made in the USA. Our Direct Fit Bellhousings are available for
the T350, T400, Powerglide and the Metric T200.
The Standard version is designed to bolt on to the face of the
pump and the case finish is not as critical. The Direct Fit version
is designed to actually indicate on the outside diameter of the
pump and precise machining is required.
ATI can prep your case for you if ordering a Direct Fit Bell. Consult
your Sales Technician for more information.
Description
Part #
Price
ATI PG - SFI CHEVY BELL HOUSING - BOLT ON - OEM CASE
200045
$319.00
ATI PG - SFI CHEVY BELL HOUSING - DIRECT FIT - MODIFIED OEM CASE
200045A
$319.00
ATI PG - SFI CHEVY BELL HOUSING GASKET
200045G
$4.49
ATI T350 / T400 - SFI CHEVY BELL HOUSING - BOLT ON - OEM CASE
200044
$319.00
ATI T350 / T400 - SFI CHEVY BELL HOUSING - DIRECT FIT - MODIFIED OEM CASE
200044A
$319.00
ATI T350 / T400 - SFI CHEVY BELL HOUSING GASKET
200044G
$4.49
ATI METRIC T200 - SFI CHEVY BELL HOUSING - BOLT ON - OEM CASE
200046
$319.00
ATI METRIC T200 - SFI CHEVY BELL HOUSING - DIRECT FIT - MODIFIED OEM CASE
200046A
$319.00
ATI METRIC T200 - SFI CHEVY BELL HOUSING GASKET
200046G
$4.49
SuperCase Hardware
Description
Part #
Price
STUD KIT - SUPERCASE TO BELL
950263
$32.92
COOLER LINE FITTING FOR SUPERCASE -
1/4" NPT MALE TO -6 AN MALE
960002
$8.95
STUD KIT - SUPERCASE TO BLOCK
950264
$29.95
STUD KIT - BELL TO T400 SUPERCASE - PG T350 T400 SUPERCASE
950320
$11.95
SFI SuperCase Bell Packages
ATI's Bell Packages include everything you need to allow you to use a standard Chevrolet style torque converter! Contact ATI to get one of the winningest converters in drag racing history built for your combination. All packages include Bell, Flexplate,
Adapter and hardware. Option pricing available when purchased as part of complete ATI transmission.
Application
Kit
Part #
Bell
Part #
Flexplate
Part #
Adapter
Part #
Hardware
Part #
Option Price
Full
Price
SB MOPAR - BELL PACKAGE
202800
200034
915650X
915630X
951471-6
$599
$799
SB MOPAR,HEMI GEN III - BELL PACKAGE
202801
200034
915664
915606M
951366 [1]
$539
$739
BB MOPAR, 6-BOLT - BELL PACKAGE
202802
200016M
915650X
915630X
951471-6
$489
$689
BB MOPAR, 8-BOLT - BELL PACKAGE
202803
200016M
915660X
915640X
951435-8
$539
$739
SB MOPAR, LATE MODEL HEMI - BELL PACKAGE - DUAL STARTER POCKETS
202805 [2]
200034
915664
915606
951372-8
$599
$799
SB FORD, 157T - BELL PACKAGE
202810 [3]
200018
915710
915605
950143
$499
$699
SB FORD, 164T - BELL PACKAGE
202811 [3]
200021
915707
915605
950143
$499
$699
SB FORD, MOD MOTOR - BELL PACKAGE
202812
200007
915719
915607
950144
$529
$729
BB FORD, 164T INT - BELL PACKAGE
202813
200025
915700
915611X
950143
$489
$689
FORD 5.0L COYOTE - BELL PACKAGE
202815
200007
915719
915607A
951378-8
$529
$729
FORD 7.3L GODZILLA - BELL PACKAGE (Companion Kit PG / T400)
202816
200007
915719
915608
951378-8
$529
$729
TOYOTA SUPRA - BELL PACKAGE
- Requires custom ATI Converter
202820
2000028
915471
915080
951362 [1]
$489
$689
Requires 8
Includes 6 Converter spacers 954130
Includes Starter Shim 915050 & Block Plate 915166
SFI Bellhousings and Accessories
Part
#
Applications
Price
200014
Chevy Bellhousing (only)
for ATI SuperCase
$419.00
200014HD
Chevy Bellhousing (only)
for ATI SuperCase
$429.00
200007
ATI Ford Mod Motor -
Bellhousing
$549.00
200025
BB Ford Bellhousing for 164 tooth Flexplate
$479.00
200018
SB Ford Bellhousing
for 157 tooth Flexplate
$489.00
200021
SB Ford Bellhousing
for 164 tooth Flexplate
$489.00
200016M
BB Mopar Bellhousing
for ATI SuperCase
$549.00
200034
SB Mopar and new HEMI - Dual Starter Pockets - Bellhousing
for ATI SuperCase
$549.00
200028
Toyota Supra Bellhousing for ATI SuperCase
$479.00
915132
Chevy Bellhousing (only)
modified for Toyota 1FZ-45 Adapter kit
$469.00

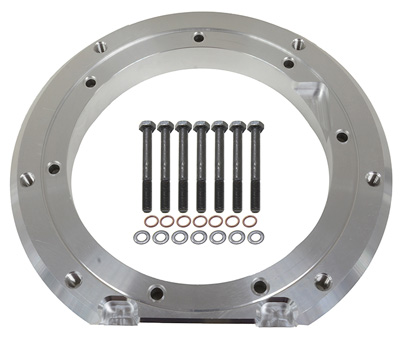

915137
Adapter ring - ATI Bell to 4L80E / 4L85E - Case and pump machine work required
