Stator Support Tubes and Pump Halves



Stator Support Tubes support and center the stator inside the converter and lock the stator from turning when the converter is multiplying torque while the sprag is locked. The inside of the tube provides a surface for the oil rings on the input shaft to seal, preventing the oil from coming out of the converter and going directly into the transmission. The front ring on the input shaft seals and sends the oil through the pump to the cooler. The oil returns from the cooler to the hole between the rings into the input shaft and is then directed to cool and lube the clutches, bearings and gear set.

Available for Powerglide Transmissions

Applications
Part Number
Price

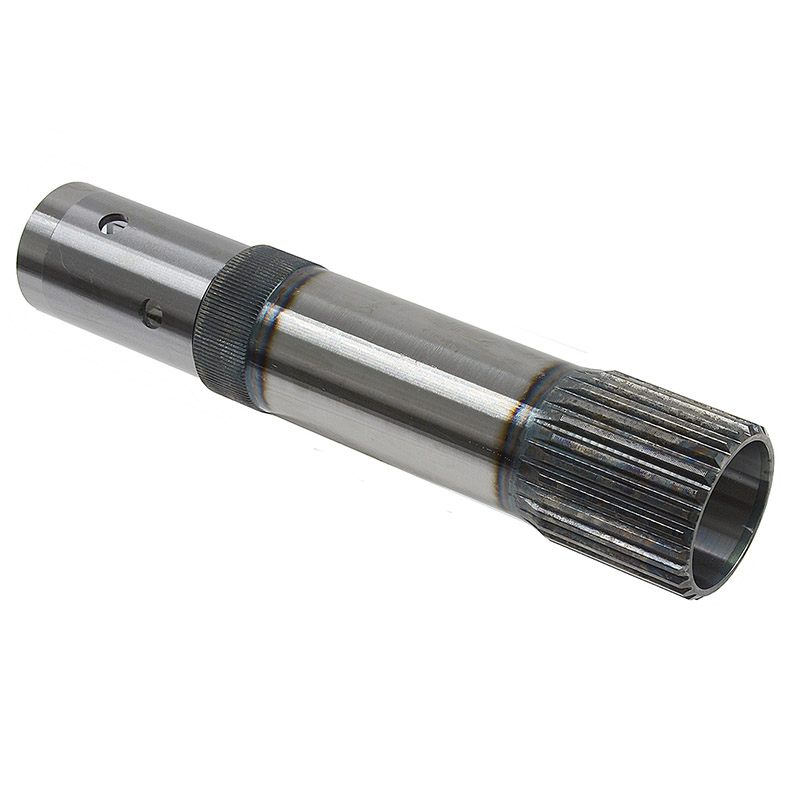

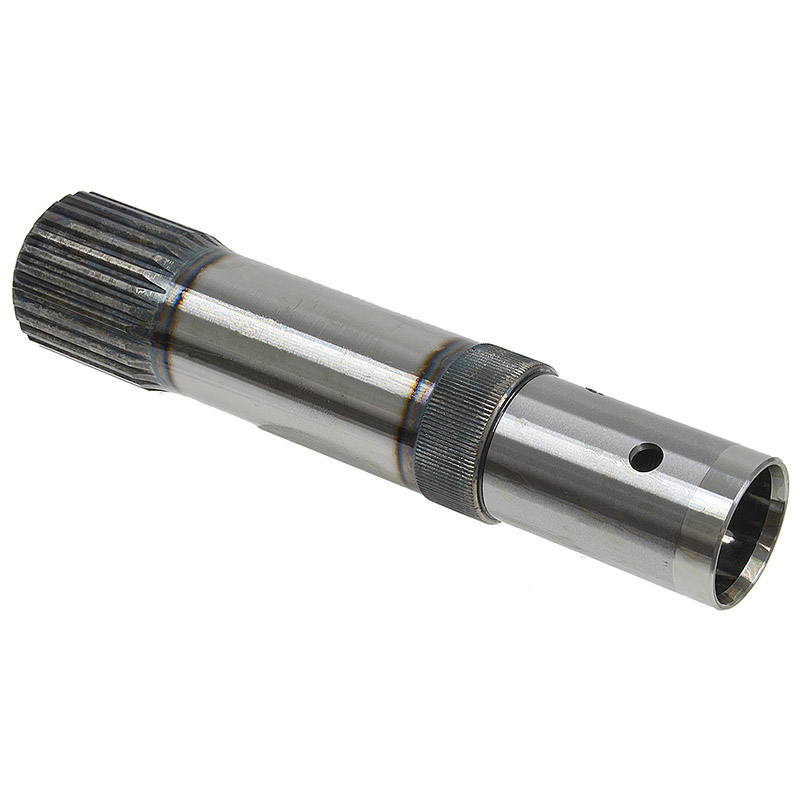

PG - HEAT TREATED, 4140 - OEM STYLE “PRESS IN”
205210
$80.55
PG - HEAT TREATED, 4140 - OEM STYLE “PRESS IN”, RINGLESS - FOR 207148 & 207159AV SHAFTS
205232
$103.60

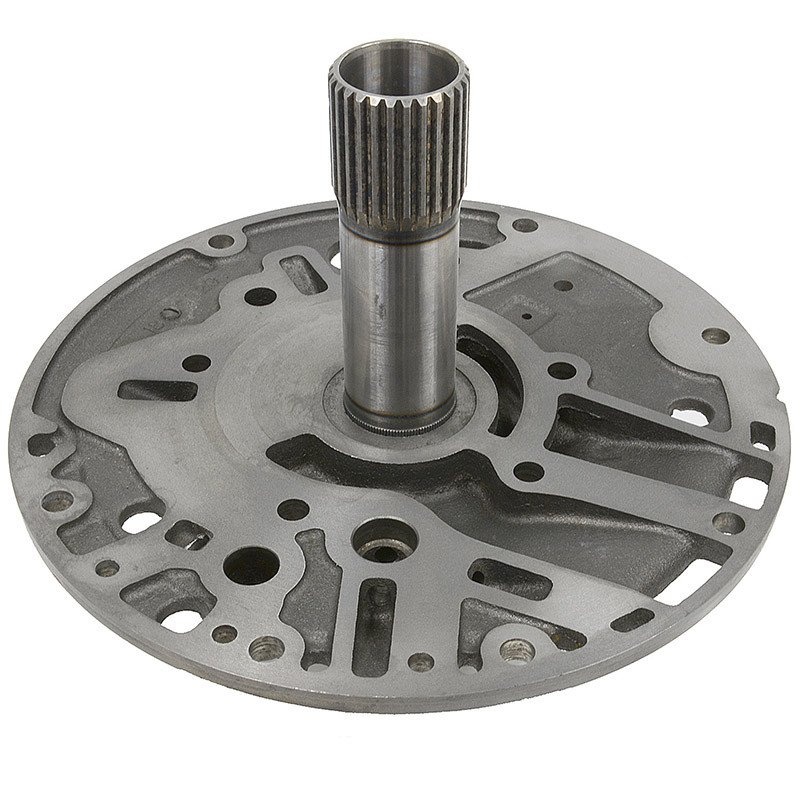

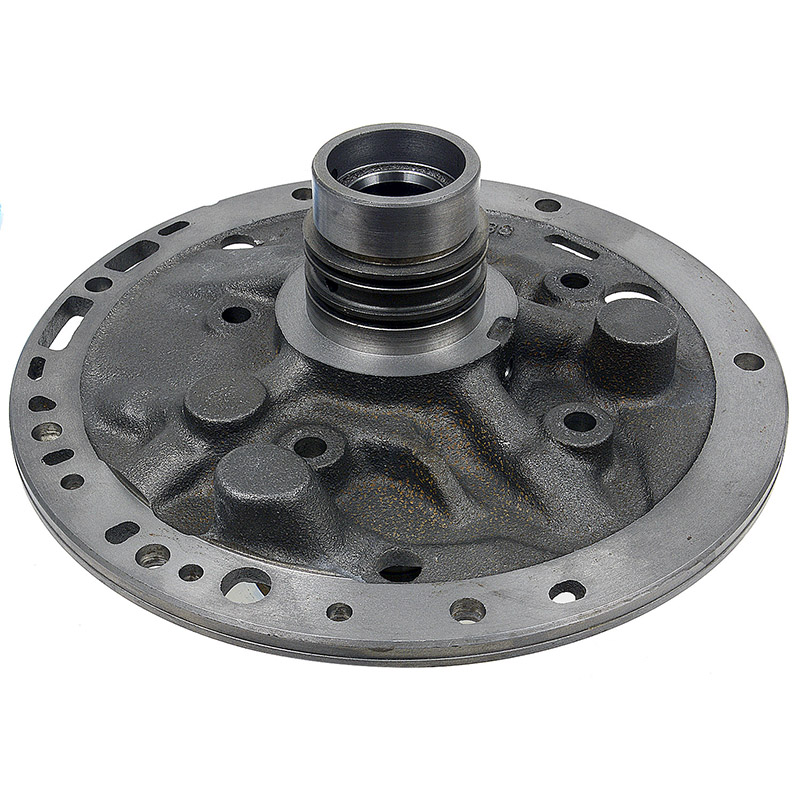

PG - NEW OEM STYLE PUMP STATOR, HEAT-TREATED, 4140 - OEM STYLE
205262
$179.00
PG - NEW OEM STYLE PUMP STATOR, HEAT-TREATED, 4140 - RINGLESS
205261
$189.00

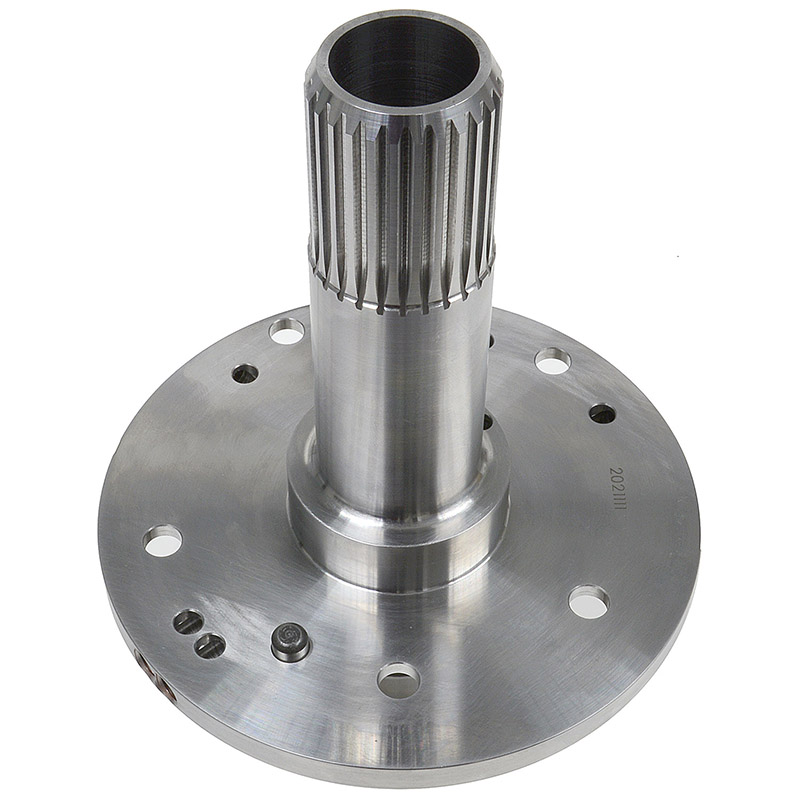

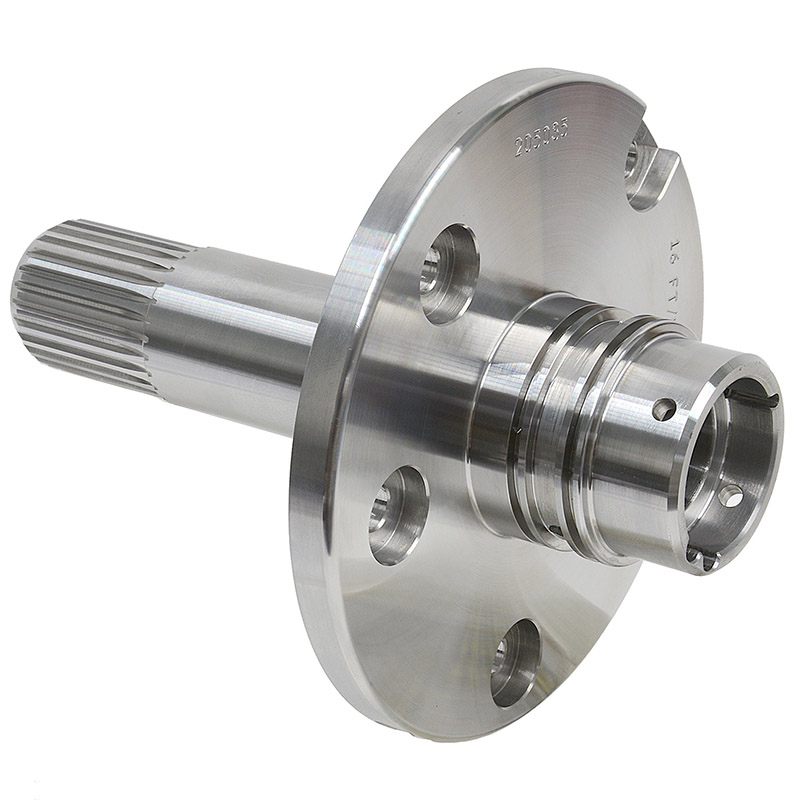

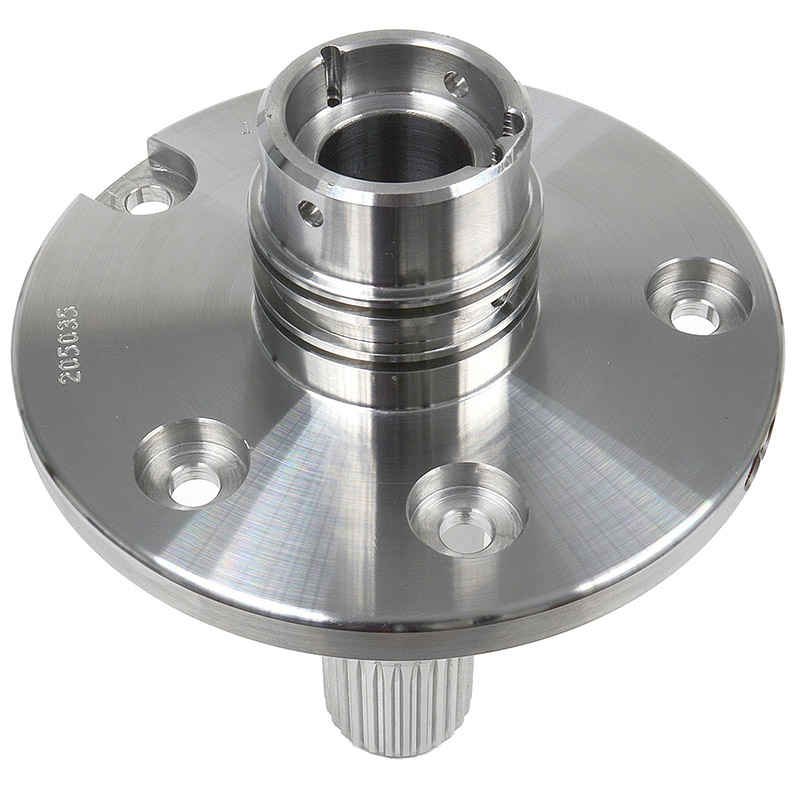

PG - SUPER PUMP STYLE, HT STATOR TUBE, OEM SIZE “BOLT IN”
205035
$210.00

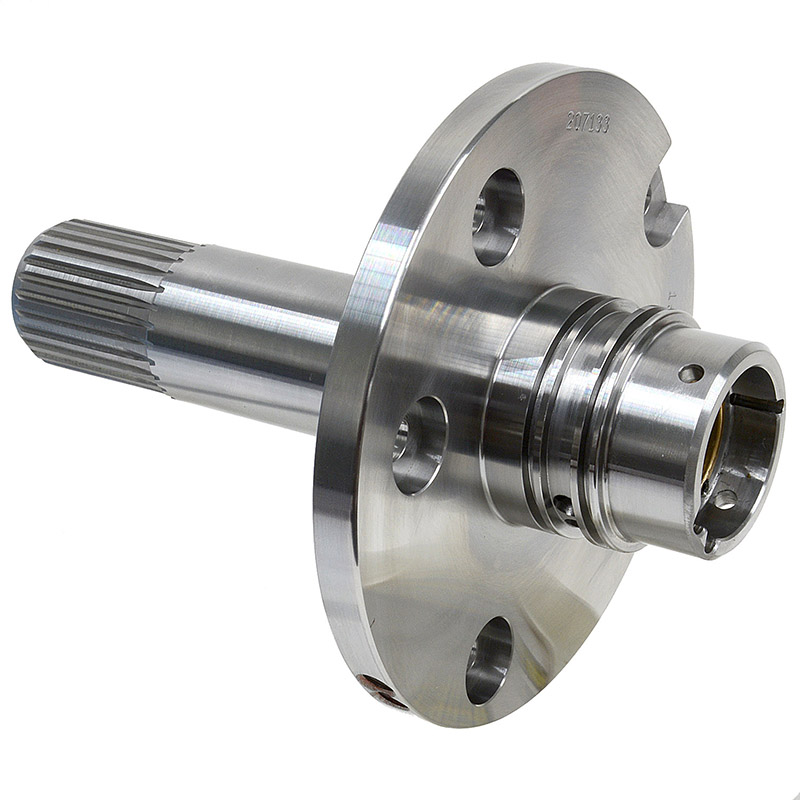

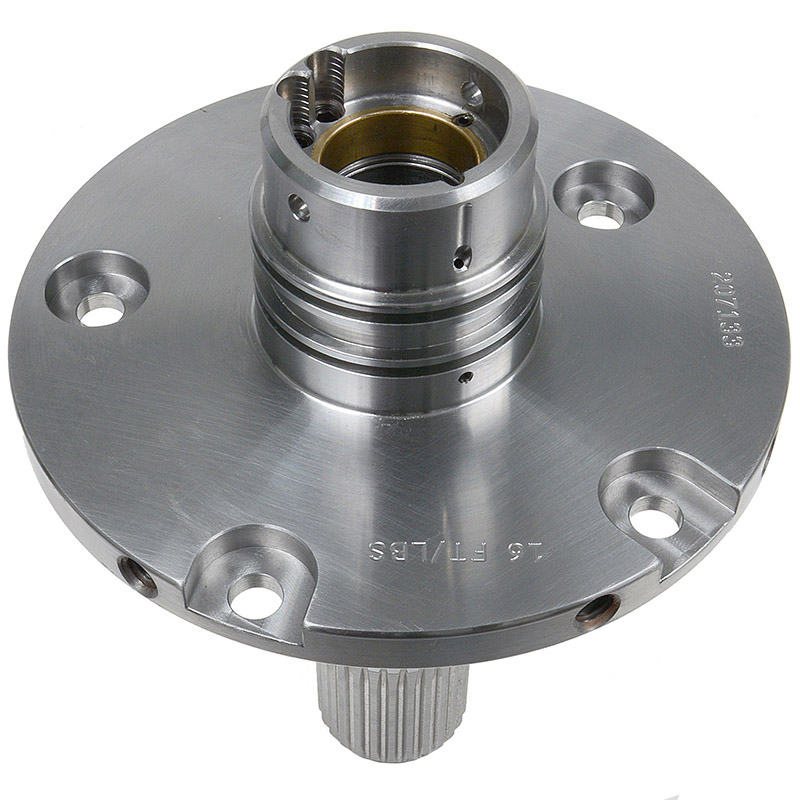

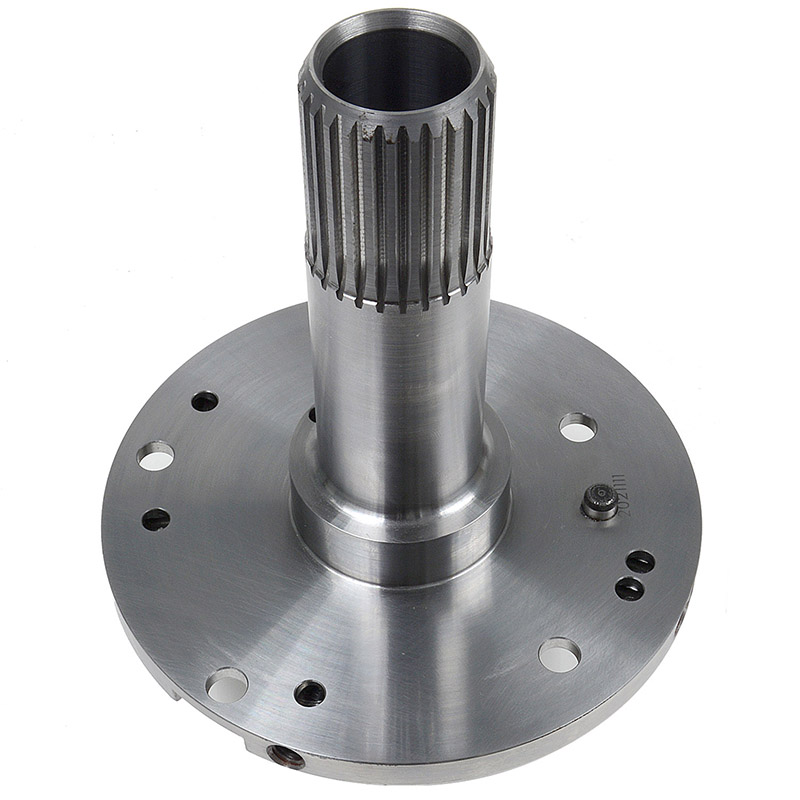

PG - SUPER PUMP STYLE, HT STATOR TUBE, OEM SIZE RINGLESS “BOLT IN”
207133
$230.00

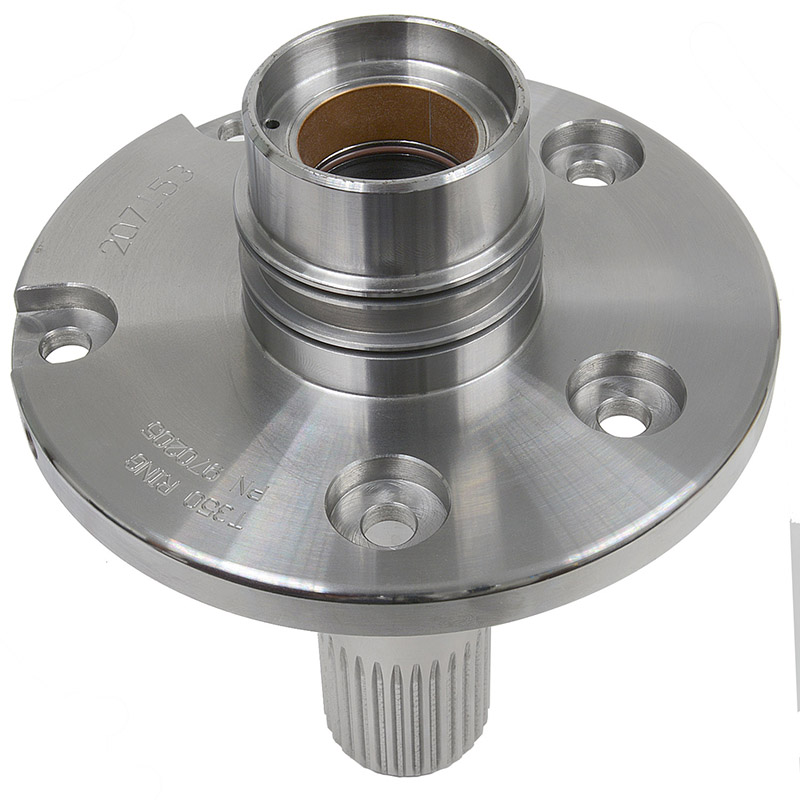

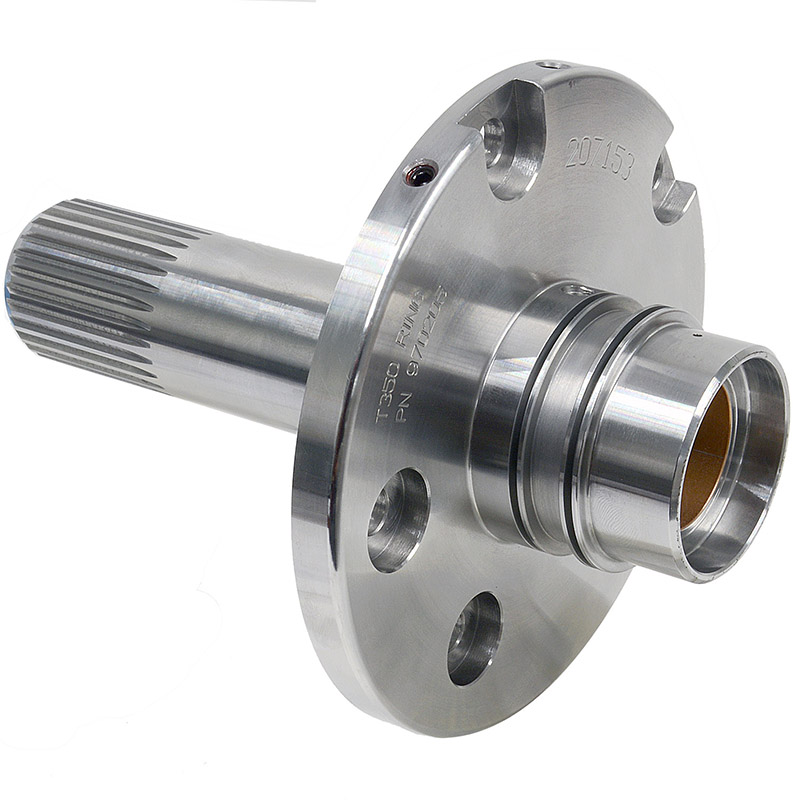

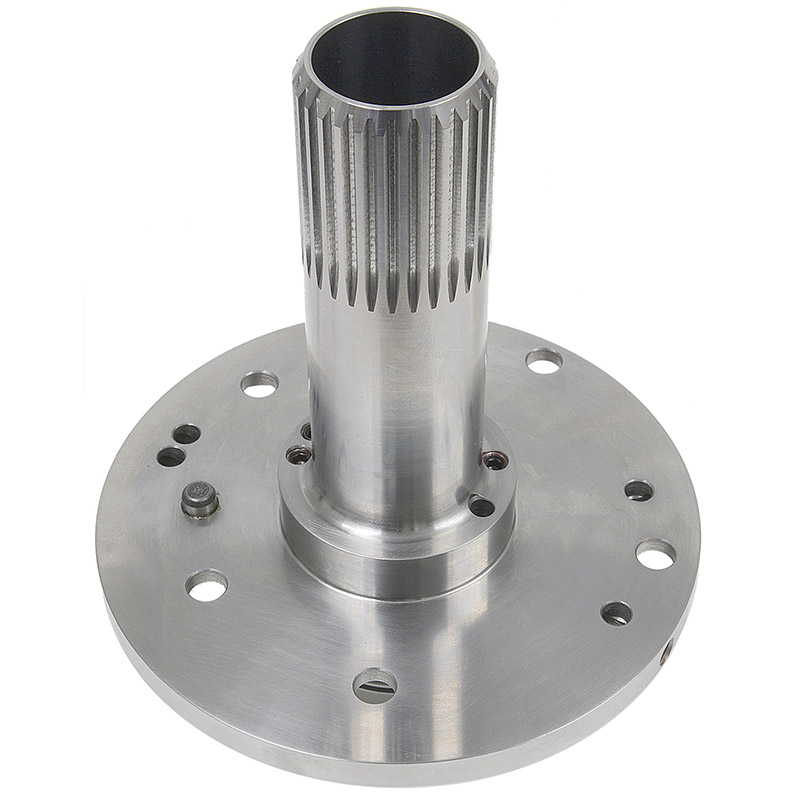

PG - SUPER PUMP STYLE, HT STATOR TUBE, BIG SHAFT
207153
$249.00
