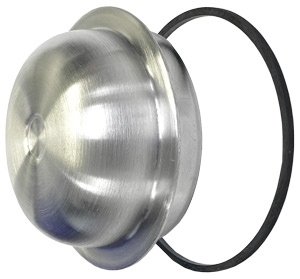

Billet Servo Covers
These CNC-machined billet aluminum plates cover the
servo with style, and precision construction assures an
excellent seal. Servo covers are available for the Powerglide
and the Ford C6 - which employs permanent lip-type seals
to conform to various transmission case bores. Powerglide
units feature an anodized finish and ARP bolts.
Description
Part
No.
Price
PG - BILLET SERVO COVER
C6 - ALUMINUM SERVO COVER
205325
605411
$38.95
$197.74
Ford C4 Servo and Cover Superb 1-2 shifts! Helps 2-3 with superior band release.
Description
Part
No.
Price
C4 - BILLET SERVO AND COVER
C4 - BILLET SERVO COVER ONLY
C4 - SEAL KIT
645411
645411C
645412
$119.95
$74.95
$12.49
SUPER SERVO CUTAWAY
Powerglide Super Servo
ATI’s new Super Servo (PATENT #8,250,967) gives
the ability to increase the servo bore from the stock
2.750” bore to 3.250” on any OEM or aftermarket
Powerglide case. This increases the servo pistons apply
area nearly 30% from 5.93 square inches to 8.29 square
inches. With this additional area you are now able to
increase the band’s clamping force equal to what
you would have running 300psi of line pressure, however
you only need 215psi to do so! Take a look at
these numbers:
5.93 x 288psi = 1186 lbs
5.93 x 300psi = 1779 lbs
8.29 x 215psi = 1782 lbs
Description
Part
No.
Price
POWERGLIDE SUPER SERVO
O-RING KIT
205327
205335
$459.00
$5.99
Twin Seal Servo
ATI's twin seal servo features 2 metal sealing rings
(as opposed to the single seal stock design), which
greatly improves shifting performance in high horsepower
applications and extends clutch and band life. The servo
is precision CNC-machined from billet aluminum.
Description
Part
No.
Price
POWERGLIDE
PG SERVO WITH GAPLESS TWIN RINGS
GASKET, SERVO COVER TO CASE
O-RING, SERVO COVER TO CASE
STEEL SERVO RING
205322
205318
205330
205340
205320
$35.95
$39.95
$3.56
$3.46
$3.88
705035
Servo Piston for 700R4, 4L60E/4L65E
ATI’s Servo Piston for the 700R4 and 4L60E/4L65E firms
up the 1-2 and 3-4 shifts. These pistons are both CNC-machined
from 6061 T6 aluminum.

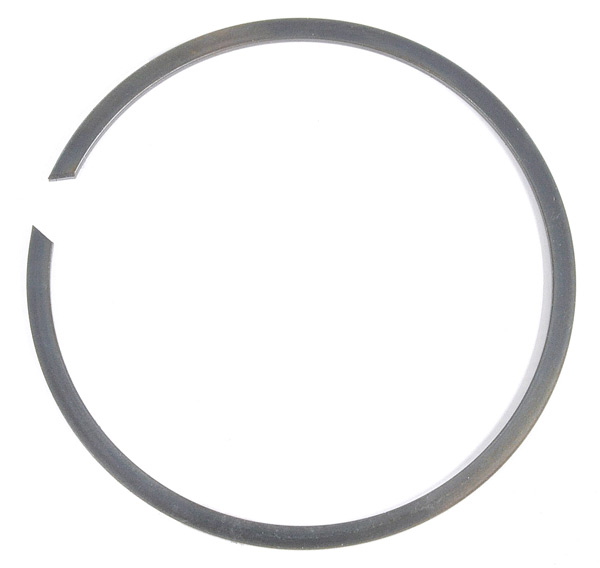

Gapless Servo Rings
ATI’s new servo rings have zero gap to totally
seal the servo to the bore for exceptional band pressure
and easier installation. Standard equipment on ATI’s
Superglides. An excellent addition to ATI’s Twin
Seal Servo.
