700R4, 4L65E & 4L85E Transmissions
4 Speed Automatic Racing Transmissions


ATI Racing Transmissions are blueprinted and assembled to the specific torque demands of each engine application
A very popular street & hot rod transmission, the heavy-duty
ATI unit may used effectively on the drag strip.

Gear Ratios

700R4 / 4L65E
4L85E
1st:
2nd:
3rd: 4th:
3:08
1:65
1:1
0.69:1
1st:
2nd:
3rd: 4th:
2:48
1:48
1:1
0.74:1
Example: 4.10 rear gear, 26” tall tire=2400 RPM @ 65

Modifications and Options:

• Fully blueprinted and equipped with high flow lube circuits for
  increased torque capacity
• Hard chrome oil rings
• Sprags replaced with heavy duty units
• Clutch packs are assembled for individual applications
• Lightweight options available to upgrade the transmission

NHRA ContingencyIHRA Contingency






700R4 Transmissions


Price
COMPETITION Full Manual Reverse Pattern
w/Lock-up
converter
701200
$1,995.00
STREET/STRIP 450 HP Max
701000
$1595.00

4L65E Transmissions

Price
STREET ROD PACKAGE 550 HP Max
701803
$3,995.00
STREET ROD PACKAGE
w/Trans Controller
550 HP Max
701804
$4495.00

4L85E Transmissions

Price
STREET ROD PACKAGE 700 HP Max
701805
$5995.00
STREET ROD PACKAGE
w/Trans Controller
700 HP Max
701806
$6695.00
STREET ROD PACKAGE 1000 HP Max
701807
$6595.00
STREET ROD PACKAGE
w/Trans Controller
1000 HP Max
701808
$7395.00



Street Rod Transmission & Converter Package



Kits includes Street / Strip Transmission, Streetmaster Converter®, transmission cooler with fan, cooler installation kit, polyurethane trans mount, Trick-Stick™ Locking Dipstick & tube. Available in forward pattern automatic function only.

700R4 Street Rod Package
Rated to 450 HP Forward pattern automatic function only
• 700R4 transmission
• High performance converter
• Polyurethane trans mount
• Trick stick dipstick & tube
• Cooler with integral fan
• Cooler installation kit
• Universal TV Cable
• Crate fee
• Core charge
701000
708330
206621
705490
925139
925132
702050



$1,549.00
$695.00
$38.77
$51.61
$155.00
$49.00
$34.00
$65.00
$150.00
Price if purchases separately:
$2787.38
Package Price:
701800
$2495.00

OPTION #1 - DEEP CAST ALUMINUM PAN
TV CABLE CORRECTORS - INCLUDED IN PRICE
EDELBROCK CARB CORRECTOR CABLE
EDELBROCK CARB CORRECTOR CABLE

703500

702030
702040

$179.00

$26.95
$26.95

4L65E Street Rod Package
Rated to 550 HP Forward pattern automatic function only
• 4L65E transmission
• High performance 10" lock-up converter
• Polyurethane trans mount
• Trick stick dipstick & tube
• Cooler with integral fan
• Cooler installation kit
• Crate fee
• Core charge
ATI will refund $500 for a good, matching number core.
Package Price (NO SHIFT CONTROLLER)
701803
$3995.00
Package Price - WITH SIMPLE SHIFT
701804
$4495.00


OPTION #1 - DEEP CAST ALUMINUM PAN
OPTION #2
- SIMPLE SHIFT KIT UNIT (CARB)
OPTION #3
- SIMPLE SHIFT KIT UNIT (EFI)
OPTION #4
- PROGRAMMABLE CONTROL KIT (CARB)
OPTION #5 - PROGRAMMABLE CONTROL KIT (EFI)


703500
705505
705506
705510
705509

$179.00
$649.00
$569.00
$899.00
$795.00

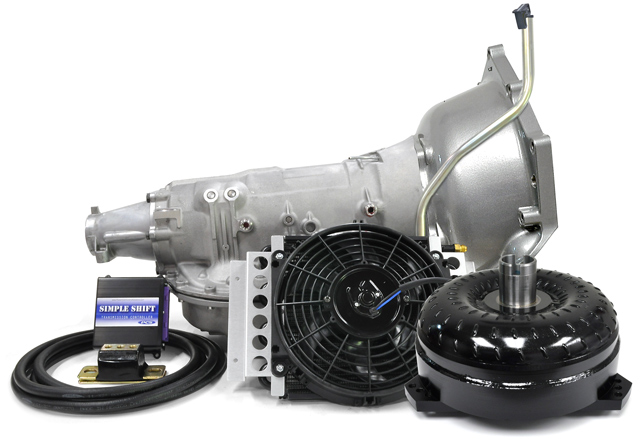

4L85E Street Rod Package
Rated to 650 HP Forward pattern automatic function only
• 4L85E transmission
• High performance 10" lock-up converter with billet    aluminum cover
• Polyurethane trans mount
• Trick stick dipstick & tube
• Cooler with integral fan
• Cooler installation kit
• Crate fee
• Core charge
ATI will refund $500 for a good, matching number core.
Package Price (NO SHIFT CONTROLLER)
701805
$5995.00
Package Price - WITH SIMPLE SHIFT
701806
$6695.00

OPTION #1
- DEEP CAST ALUMINUM PAN
OPTION #2
- SIMPLE SHIFT KIT UNIT (CARB)
OPTION #3
- SIMPLE SHIFT KIT UNIT (EFI)
OPTION #4
- PROGRAMMABLE CONTROL KIT (CARB)
OPTION #5 - PROGRAMMABLE CONTROL KIT (EFI)
OPTION #6 - SIMPLE SHIFT TUNER W/CABLE

703500
705507
705508
705512
705511
705520

$179.00
$649.00
$569.00
$899.00
$849.00
$299.00

4L85E High HP Package
Rated to 1000 HP
Includes 300M Input and main Shaft, Billet Clutch
Hub, Extra Clutches in 3rd Gear, High Energy Clutch
Material and Deep Cast Pan.
ATI will refund $500 for a good, matching number core.
Package Price (NO SHIFT CONTROLLER)
701807
$6595.00
Package Price - WITH SIMPLE SHIFT
701808
$7395.00

OPTION #1
- DEEP CAST ALUMINUM PAN
OPTION #2
- SIMPLE SHIFT KIT UNIT (CARB)
OPTION #3
- SIMPLE SHIFT KIT UNIT (EFI)
OPTION #4
- PROGRAMMABLE CONTROL KIT (CARB)
OPTION #5 - PROGRAMMABLE CONTROL KIT (EFI)
OPTION #6 - SIMPLE SHIFT TUNER W/CABLE

703500
705507
705508
705512
705511
705520

$179.00
$649.00
$569.00
$899.00
$849.00
$299.00

Transmission pressure and temperature gauge must be installed or warranty is void. No additional core charge, however $150 core credit is available with 700R4 cores and $500 credit on 4L65E and 4L85E cores. CLICK HERE TO DOWNLOAD FORM


PCS Automatic Transmission Controller


PCS Transmission Control Kit

The Universal Automatic Transmission Controller by Powertrain Control Solutions, LLC., is a fully programmable transmission control system. Through a friendly PC Windows interface users are able to program transmission settings based on speed, engine load, engine speed and other parameters. This powerful unit allows users to control every type of electronic automatic transmission and is available for ATI's 4L60E and 4L65E transmission.

Click here for more details

Description
Part #
Price
PCS TRANSMISSION CONTROL UNIT
705500
$699.00
PCS TPS SENSOR UNIT
705501
$99.00
PCS TRANSMISSION WIRING HARNESS - 4L60/65E
705503
$150.00
PCS TRANSMISSION WIRING HARNESS - 4L80/85E
705502
$150.00
PCS CONTROL KIT - 4L60, 4L65E 93+ w/EFI
705509
$795.00
PCS CONTROL KIT - 4L60, 4L65E 93+ w/CARB
705510
$899.00
PCS CONTROL KIT - 4L80, 4L85E 93+ w/EFI
705511
$849.00
PCS CONTROL KIT - 4L80, 4L85E 93+ w/CARB
705512
$899.00


PCS Simple Shift Automatic Transmission Controller


PCS Simple Shift Transmission Control Kit

Laptops or hand-held tuning devices are not required to completely control shift points (raise or lower when your transmission shifts), shift firmness (change from soft to hard to suit your driving style), and torque converter lock up (lock up sooner for better fuel economy). All parameters are simply adjusted with easy-to-use dials on the end of the Simple Shift unit. Complete control of how and when your transmission shifts is at your fingertips. Simple Shift also comes with complete diagnostic capabilities. Simple Shift gives you complete control at your fingertips! Comes with full wiring harness tailored to your specific transmission.

Many other applications available: 4L70, 4L80, 5L50, 4R70, AODE, 4R100.
Call an ATI Sales technician for details.

Click here for more details

Description
Part #
Price
CONTROL UNIT - KNOB TYPE
705504
$450.00
CONTROL KIT - 4L60E / 4L65E - FOR CARB - 93+
705505
$649.00
CONTROL KIT - 4L60E / 4L65E - FOR EFI - 93+
705506
$579.00
CONTROL KIT - 4L80E / 4L85E - FOR CARB - 93+
705507
$649.00
CONTROL KIT - 4L80E / 4L85E - FOR EFI - 93+
705508
$569.00
TRANS HARNESS - 4L60E / 4L65E - FOR CARB AND EFI - 93+
705514
$129.00
TRANS HARNESS - 4L80E / 4L85E - FOR CARB AND EFI - 93+
705515
$129.00

4L80E/4L85E Teflon Ring Kit




4L80E/4L85E Teflon Ring Kit

This kit contains 17 assorted rings including 2 types for Center Supports to be used as needed for the application.

Description
Part Number
Price
TEFLON RING KIT, 1991 AND UP
703507
$19.95

Shift Kit 4L60E, 4L65E and 4L70E




Shift Kit from Superior
®
This Shift Correction Package offers regular and heavy duty applications in one package. The Superior 4L60-E kit helps prevent premature wear of the forward sprag. Improves overall performance and shift quality. Converts lock-up to an on/off system to help stop the TCC slippage code. Fits 4L60E, 4L65E and 4L70E. Servo Not included.

Description
Part Number
Price
SHIFT KIT - 4L60E - 1993-1997
703212
$59.00
SHIFT KIT - 4L70E, AND 4L60E, 4L65E, 1998 AND UP
703213
$74.95


700R4 Universal Throttle Valve Cable


Universal TV Cable
ATI's Universal Automatic Transmission Kickdown/Throttle Valve Cable is adjustable in order to ease a swap or to replace an old and worn out factory unit.

Description
Part Number
Price
UNIVERSAL TV CABLE
TV CABLE CORRECTOR FOR EDELBROCK CARBURETOR
TV CABLE CORRECTOR FOR HOLLY CARBURETOR
702050
702030
702040
$34.00
$26.95
$26.95

700R4 Sun Gear Shell

700R4 Heavy Duty Sun Gear Shell
THIS IS A HIGH FAILURE PART AND SHOULD BE REPLACED ON EVERY REBUILD Replaces the weak, OEM Sun Gear Shell. Fits 700R4 / 4L60E / 4L65E 1982-ON and includes washer specially designed for this shell

Description
Part Number
Price
700R4 HEAVY DUTY SUN GEAR SHELL
705040
$79.00
