Home > Products > Gear Sets | Shorty Gears | 3-Speed Low Gear Sets | Reverse Ring Gears

Gears & Gear Sets

For Stock, Super Stock, Comp Eliminator and Circle Track only!
ATI stocks the widest selection of Powerglide Low Gears in the industry. These gears are based on the lightweight OEM 6 cylinder planetaries. Gear ratios include 1.58, 1.68, 1.76, 1.90, 1.94, 1.98, 2.08, 2.18 Vasco gear sets. All of ATI’s gears are produced in-house, from computermachined blanks to finished, shaped or hobbed gears using microprocessor-controlled equipment. The tools we use to cut our gears are coated by a Titanium Nitride process that improves tool hardness and allows the tool to remain in "like new" condition. This results in a premium finish on all gears and allows us to hold extremely close tolerances on pitch diameters and helix angles, assuring you the highest quality possible. These Specialty Ratio gear sets are for SB cars only, lightweight cars such as dragsters, or low torque, high RPM combination cars. 283, 327, mild 350 CI motors and lightweight combinations usually fair very well with these ratios. ATI limits HP to 650 as a max with a lightweight car. Stock, Super Stock, Comp, and Bracket Dragsters are all viable applications.


Helical & Straight Cut Super Vasco Set Gears
  • All 8 gears are new - long and short pinions, sun & flange gear
  • No factory gears are used
  • Each gear made of high quality Vasco steel
  • Recommended for engines with a stroke of 3.5” or less
  • Super strong lightweight ring gears in steel or aluminum
  • Eliminates power loss from friction
  • All thrust loading in the Powerglide from the reverse ring gear to the reverse pressure plate is totally eliminated
  • OEM carrier gear sets carry a 90 day quality of work warranty.

HELICAL CUT GEARS



STRAIGHT CUT GEARS


1 year warranty when built in a new aluminum carrier and output shaft

NEW - 1.82 based billet aluminum carrier and heavy duty gun drilled output shaft! This part adds rigidity and strength to your gear set and reduces overall weight by 1/2 lb! Add $349 to your gearset of choice for a new ATI Trans build!

Used ATI gear sets can be updated! Requires the purchase of a 1.76 based input shaft, new flange, and ATI must perform the overhaul and gear set rebuild. $349 plus parts mentioned.

Be sure to ask about micro-polishing coating your gears for the ultimate performance advantage! $349


Powerglide Gear Sets

Gear Types Gear Ratios
Price
1.68
1.90
1.94
1.98
  28" SUPER SET - HELICAL
203920
203923
203924
203925
$1095.00
  28" SUPER SET - STRAIGHT CUT
--
203933
203934
203935
$1095.00
  28" SUPER SET - STRAIGHT CUT - ALUMINUM REVERSE RING
    3 GEAR FORREVERSE CLUTCHES
--
203933A
203934A
203935A
$1149.00
FOR LIGHTENED CARRIER OPTION, ADD $75

Powerglide Gear Sets for 2.08 & 2.18 Ratios
These Specialty Ratio gear sets are for SB cars only, lightweight cars such as dragsters, or low torque, high RPM combination cars. 283, 327, mild 350 CI motors and lightweight combinations usually fair very well with these ratios. ATI limits HP to 650 as a max with a lightweight car. Stock, Super Stock, Comp and Bracket Dragsters are all viable applications.

LIGHTENED CARRIER OPTION ADD $75

Gear Types
2.08 Gear Ratio
2.18 Gear Ratio
Price
28" SUPER SET - HELICAL
28" SUPER SET - STRAIGHT CUT
28" SUPER SET - STRAIGHT CUT - ALUMINUM REVERSE RING GEAR
203926
203936
203936A
--
203937
203937A
$1095.00
$1095.00
$1149.00



Powerglide Shim Kit
Our new PG Shim Kit allows end play adjustments to be done at the carrier end of the transmission while keeping the direct apply circuit and lube circuit in the high gear drum aligned with the stator tube feed - a must for high performance applications. Includes 0.015”, 0.030” and 0.045” shims.

Description
Part Number
Price
POWERGLIDE SHIM KIT
205379
$9.10



Shorty Gear Set 204071 204110
204071 204110
Shorty 18" Powerglide Gear Sets
Rear engine dragsters and boat racers will appreciate ATI Shorty Gear Sets. It reduces the overall length of the Powerglide by 10" (18" overall) and provides you with that extra room when you need it.


Product Description
Length
Part #
Price
1.76 GEARS WITH NEW 4340 BOLT-TOGETHER OUTPUT & CARRIER with 1.76 OEM flange & reverse ring gears
18"
204071
$695.00*
28"
204081
$695.00*
1.82 - OEM GEAR SET - OEM OUTPUT
18"
204110
$335.00
28"
204090
$295.00




Powerglide Heavy Duty Gear Sets - 9310
Made from 9310 Material for 19 spline input shafts. Includes 2 year warranty. HP ratings are weight specific and customer must adhere to HP limits for valid warranty.

Gear Types
Ratio
DP
Length
HP Rating
Part No.
Price
   STRAIGHT CUT
1.74
14 DP
18”
1500 HP
204983
$995.00
   STRAIGHT CUT
1.74
14 DP
28”
1500 HP
204989
$995.00
   HELICAL SUPER SET
1.76
16 DP
18”
1000 HP
204954
$995.00
   HELICAL SUPER SET
1.76
16 DP
28”
1000 HP
204988
$995.00
   STRAIGHT CUT
1.80
12 DP
18”
1500 HP
204994
$995.00
   STRAIGHT CUT
1.80
12 DP
28”
1500 HP
204996
$995.00
   STRAIGHT CUT
1.87
14 DP
18”
1300 HP
204985
$995.00
   STRAIGHT CUT
1.87
14 DP
28”
1300 HP
204991
$995.00

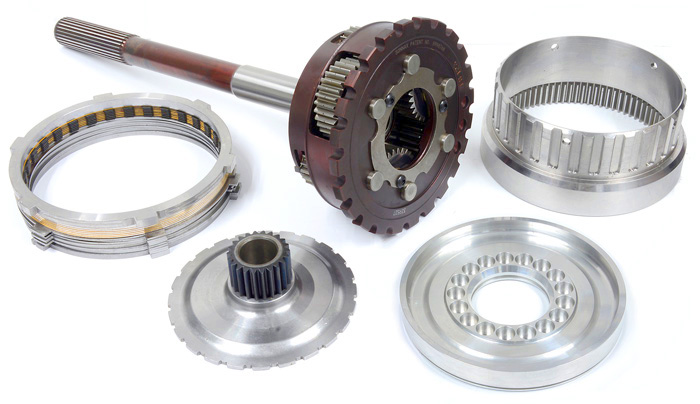

Powerglide 9310 Super Set Gears
With 7 thin reverse clutches and Powerglide 19 spline input shaft

Gear Types
Ratio
Length
HP Rating
Part No.
Price
   STRAIGHT CUT
1.58
28”
2000 HP
203938
$2721.75



Powerglide Extreme Gear Sets - Vasco

Highest HP rating for non-Superglide Transmissions. Accepts OEM/PG spline input shafts and has standard OEM PG output shafts. Made from Vasco Material for non-Superglide gears, 19 spline. Includes 2 year warranty. HP ratings are weight specific and customer must adhere to HP limits for valid warranty.

Gear Types
Ratio
DP
Length
HP Rating
Part No.
Price
   STRAIGHT CUT - VASCO - PG SUN / PG OUTPUT
1.64
12 DP
18”
2000 HP
204885V
$1395.00
   STRAIGHT CUT - VASCO - PG SUN / PG OUTPUT
1.64
12 DP
28”
2000 HP
204886V
$1395.00
   STRAIGHT CUT - VASCO
1.74
14 DP
18”
2000 HP
204983V
$1395.00
   STRAIGHT CUT - VASCO
1.74
12 DP
28”
2000 HP
204989V
$1395.00
   STRAIGHT CUT - VASCO
1.80
12 DP
18”
2300 HP
204984V
$1395.00
   STRAIGHT CUT - VASCO
1.80
12 DP
28”
2300 HP
204990V
$1395.00



Superglide Straight-Cut
Vasco Gear Sets

Made from Vasco Material, these gear sets feature a Heavy Duty Output, Precision Balanced Carrier! Includes 2 year warranty. HP ratings are weight specific and customer must adhere to HP limits for valid warranty. Available in standard 28" and 18" shorty length for rear engine dragsters.

162 Gears
Superglide 2 - 30 Spine Input Shafts
Gear Types
Ratio
DP
Length
HP
Part No.
Price
   STRAIGHT CUT - VASCO - SG2 SUN / PG OUT
1.64
12 DP
18”
2300 HP
204887VS
$1695.00
   STRAIGHT CUT - VASCO - SG2 SUN / PG OUT
1.64
12 DP
28”
2300 HP
204888VS
$1695.00
   STRAIGHT CUT - VASCO
1.80
12 DP
28”
2800 HP
204999VS
$1695.00
   STRAIGHT CUT - VASCO
1.80
12 DP
18”
2800 HP
204998VS
$1695.00


Superglide 4 - 27 Spline Input Shafts
Gear Types
Ratio
DP
Length
HP
Part No.
Price
   STRAIGHT CUT - VASCO - HD T400 OUTPUT - LIGHT
1.62
12 DP
28"
3500 HP
204880VSLWT [3]
$2895.00
   STRAIGHT CUT - VASCO - HD T400 OUTPUT - LIGHT
1.62
12 DP
18"
3500 HP
204879VSLWT [3]
$2895.00
   STRAIGHT CUT - VASCO - HD T400 OUTPUT
1.64
12 DP
28"
3500 HP
204900VS [1]
$2295.00
   STRAIGHT CUT - VASCO - HD T400 OUTPUT
1.64
12 DP
18”
3500 HP
204898VS
$2295.00
   STRAIGHT CUT - VASCO - HD T400 OUTPUT - LIGHT
1.64
12 DP
28"
3500 HP
204900VS-LWT [1]
$2495.00
   STRAIGHT CUT - VASCO - HD T400 OUTPUT - LIGHT
1.64
12 DP
18”
3500 HP
204898VS-LWT [1]
$2495.00
   STRAIGHT CUT - VASCO - HD T400 OUTPUT
1.82
12 DP
28”
3500 HP
204907VS
$2295.00
   STRAIGHT CUT - VASCO - HD T400 OUTPUT
1.82
12 DP
18”
3500 HP
204908VS
$2295.00
  1. Includes billet aluminum carrier & gun drilled output shaft. 4 lbs lighter than our normal unit
  2. Limited quantities - available while supplies last.
  3. Only available installed in an ATI transmission!
Lightweight Billet Aluminum Carrier
✔ Saves 2.2 lbs. (steel is 4.2, aluminum is 2.0 lbs.)
✔ Available for 1.62, 1.74, 1.76, 1.80 and 1.87 ratios gear sets
✔ Highest HP on the market up to 3500 HP!

  207836AL - $395.00
