Super Damper® Harmonic Dampers




Honda / Acura NSX 3.0L

ATI has designed a 5.5” damper -- Part # 917757 -- for the Honda C-Series found in the Honda & Acura NSX. This new damper is a direct replacement for the stock OEM unit and is capable of handling up to 600HP. The outer shell has been machined with the necessary multigroove pulleys to utilize the factory serpentine belt set-ups.

ENGINE
DAMPER
PART #
OUTER
DIAMETER
WEIGHT
SHELL MATERIAL
SHELL #
RIBS
HUB #
AVG
WEIGHT
HUB MATERIAL
HONDA C30A / C32B
917757
5.5"
3.60 lbs
ALUM
916793
5 & 4
916779
2.6 lbs
STEEL


Honda B Series - Super Street Damper

For Honda and Acura Applications: B16, B17, B18A1, B18B1, B18C1, B18C5, B20

ATI has designed a 5.5” damper -- Part # 918476 -- for the Honda B-Series for high horsepower street use. This new design is a direct replacement for the stock OEM Acura Integra B18 and Honda CRV B20 damper. The heart of this unit is the tried and true “damper within a damper” design that has put ATI ahead of the rest. The outer shell has been machined with the necessary multigroove pulleys to utilize the factory serpentine belt set-ups.

The damper includes a removable serpentine power steering drive pulley for ‘94 and newer B-Series applications, however a V-groove power steering drive pulley (916769) is available upon request for the earlier B-Series applications, like those found on the '90 to '93 DA Integras.
Optional V-belt Power Steering Drive Pulley




Honda B-Series Street Damper shown with supplied serpentine PS drive pulley

ALUMINUM SHELL
CRANKSHAFT HUB
PART NUMBERS
5.5" OD
3 RING
STEEL
TOTAL WEIGHT
INERTIA WEIGHT
3.60 lbs
2.20 lbs
AVG WEIGHT
2.4 lbs
INTERNAL BALANCE DAMPER ASSEMBLY PART NUMBERS
HONDA
B SERIES
4 CYL
STREET:
OEM BOLT-ON
P/S, A/C, Alt
918476

916028

FOR V-BELTS PULLEY, ORDER P/N 916769.




Honda B Series - Race

For Honda and Acura Applications: B16, B17, B18A1, B18B1, B18C1, B18C5, B20

ATI’s 7” and 6.325” race versions are built with all-out power in mind. You won’t find drives for A/C and power steering here. The alternator drive is built into the hub with laser engraved 360° timing marks on outer damper shell.



ALUMINUM SHELL
CRANKSHAFT HUB
PART NUMBERS
7.074" OD
6.325" OD
2 RING
2 RING
STEEL
AVG WEIGHT
2.4 lbs
ALUM
AVG WEIGHT
0.85 lbs
TOTAL WEIGHT
INERTIA WEIGHT
5.00 lbs
3.40 lbs
3.75 lbs
2.20 lbs
3.30 lbs
1.97 lbs
INTERNAL BALANCE DAMPER ASSEMBLY PART NUMBERS
HONDA
B SERIES
4 CYL
RACE:
Hub mounted Alternator drive,
No P/S or A/C
918471
[2]
918470
[2]
918474
[1] [2]
916026

918475
[1] [2]


916028


[1] Not for over 300 horsepower - damper has lightweight inertia for clearance!
[2] For no alternator / serpentine on hub, use hub #916027 and appropriate shell assy #.



Honda K Series

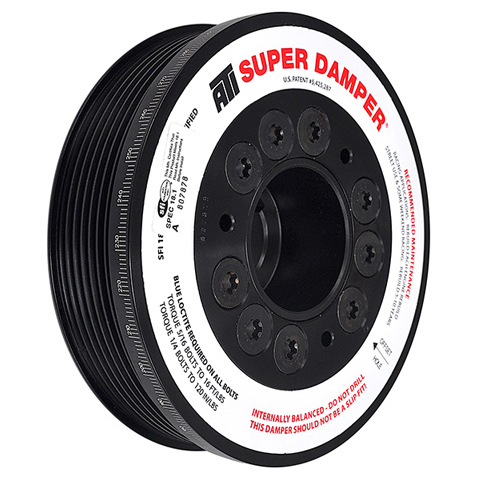

ATI Performance Products has developed Super Dampers for the Honda K-series engine for ‘02 Honda Civic Si & Acura RSX for both street and racing applications. The street version (Part # 918477) comes with 360° laser-etched timing marks and features a single serpentine belt drive on the outer shell to utilize the factory serpentine belt set-up. Race dampers allow for the mounting of a dry sump oiling drive gear to the front of the pulley. All K-series Super Dampers exceed SFI 18.1 Safety Certification and are approved for NHRA & IHRA competition.





ALUMINUM SHELL
CRANKSHAFT HUB
PART NUMBERS
7.074" OD
5.5" OD
2 RING
3 RING
STEEL
TOTAL WEIGHT
INERTIA WEIGHT
3.75 lbs
2.20 lbs
3.60 lbs
2.20 lbs
AVG WEIGHT
2.4 lbs
INTERNAL BALANCE DAMPER ASSEMBLY PART NUMBERS
HONDA
K SERIES
4 CYL
RACE (No pulley)
918478

916017
STREET
918477
916029





Honda D Series


ATI Performance Products has developed Super Dampers for the Honda D-series for racing applications. The D-Series Super Damper (Part # 918456) comes with 360° laser-etched timing marks and features a 4-rib 5.5" serpentine belt drive behind the outer shell to to run the alternator. All D-series Super Dampers exceed SFI 18.1 Safety Certification and are approved for NHRA & IHRA competition.




ALUMINUM SHELL
CRANKSHAFT HUB
PART NUMBERS
7.074" OD
2 RING
STEEL
TOTAL WEIGHT
INERTIA WEIGHT
5.00 lbs
3.40 lbs
AVG WEIGHT
2.4 lbs
INTERNAL BALANCE DAMPER ASSEMBLY PART NUMBERS
HONDA
D SERIES - 4 CYL
   RACE - 5.5" SERPENTINE DRIVE (10% U )
   ALTERNATOR DRIVE ONLY, 750 HP MAX
918456
916129





Honda F Series
For Honda F22 & F20 Engines


ATI Super Dampers for the Honda S2000 F-series engine are available for both street and racing applications. The street version (Part # 918464) comes with 360° laser-etched timing marks and features a single serpentine belt drive on the outer shell to utilize the factory serpentine belt set-up. Race dampers (Part # 918465) allow for the mounting of a dry sump oiling drive gear to the front of the pulley. All F-series Super Dampers exceed SFI 18.1 Safety Certification and are approved for NHRA & IHRA competition.



ENGINE
DAMPER
PART #
APPLICATION
OUTER
DIAMETER
WEIGHT
SHELL MATERIAL
INERTIA RING TYPE
HUB #
HUB MATERIAL
AVG WEIGHT
2.4 lbs
HONDA F20 / F22
(4 CYL)
918465 [1]
RACE
7.074"
(10% UD)
5.0 lbs
ALUM
2 RING
916128
STEEL
HONDA F20 / F22
(4 CYL)
918464
STREET
(600HP MAX)
5.67"
(7% OD)
3.6 lbs
ALUM
3 RING
916127
STEEL

Race Damper (#918465) uses pulley #916766. 4.595" diameter, 6 Rib, 10% UD
[1] Includes required special timing cover seal, ATI Part # 973128 for heat-treated, thick wall hub. Damper is not a slip fit.





Honda H Series


The ATI Honda H-Series Super Damper comes with laser-etched timing marks and is a direct replacement for the stock OEM unit. The street damper features a single serpentine belt drive on the outer shell to utilize the factory serpentine belt set-up and comes with a removable bolt-on P/S pulley. All ATI Super Dampers exceed SFI 18.1 Safety Certification and are approved for competition use. Available for '93 - '01 Honda Prelude 2.2L DOHC and '94 - '02 Honda Accord 2.2 & 2.3L




ALUMINUM SHELL
CRANKSHAFT HUB
PART NUMBERS
7.074" OD
6.780" OD
2 RING
2 RING
STEEL
TOTAL WEIGHT
INERTIA WEIGHT
5.00 lbs
3.40 lbs
3.75 lbs
2.20 lbs
5.25 lbs
3.50 lbs
AVG WEIGHT
2.4 lbs
INTERNAL BALANCE DAMPER ASSEMBLY PART NUMBERS
HONDA
H SERIES
4 CYL
RACE - SMOOTH OUTER SHELL - NO BELT DRIVES
918469 [1]
918467 [1]
916054M
STREET - 400 HP MAX
918468 [2]
916054

[1] Race damper has a smooth outer shell with no belt drives. Damper #918467 features a lightweight inertia weight
[2] PS - 4% OD, 6 rib serpentine accessory drive is 9% OD.
