Home > Products > CW3 Converter Rebuilding Equipment > Accu-Balance Converter Balancer

Accu-Balance Converter Balancer





The Accu-Balance is a fast and accurate way to balance your converters. Its simple, one button operation allows you to balance your units wet or dry and gives you a digital readout of the amount and location of imbalance in 5 seconds.

A poorly balanced converter can cause an enormous number of problems with transmission parts, bearings and crankshafts. A bad converter is costly, not only in repair bills for the customer but in loss of business for you.

Features of the Accu-Balancer:
• Durable machine base for stability and accuracy
• Blanchard ground 3/4" steel work surface
• Fully powered, direct drive spindle
• No bolts or pulleys to come loose or break
• 220 volt, single and three phase
• On-board fused power protection
• Fully fan-cooled with filtered air supply
• Rotating plate has .0002" maximum TIR in both planes
• Solid state on-board microprocessor for extreme accuracy
• Triple piezo pickup
• RFI on-board protection
• Adapters locate to the hub on o-rings to prevent damaging the hub
• Precision ground tooling shafts w/ pitch diameter fit splines to locate internal parts
• Simple indexing of internal parts at precise 90° intervals
• GM and Chrysler clutch adapters included
• 80-piece tooling package included
• Dual-mode operation allows both 5g and 1g readings
• Performs a simple, accurate machine self-test on every unit balanced

Watch the video to see how easy balancing can be with the Accu-Balancer:


  Description
Part No.
Price
  Balancer with Tooling (Single Phase / 3-wire)
  Balancer with Tooling (Three Phase / 3-wire)
  Retro-Fit Kit
  Transformer (for Export) - 190/440-110/220 50/60
850000-2P1W3
850000-2P3W3
850800
850008
$12,595
$12,595
$1,495
$895

Shipping Info:
628 lbs - 38” x 39” x 46”
Power Options: 230V - 50/60Hz - 3 Ø
230V - 50/60Hz - 1 Ø
Power transformer (#850008) needed for export use

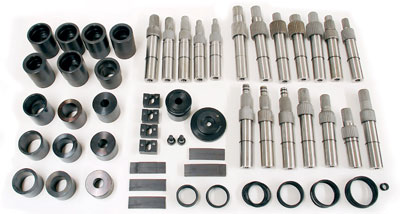

Balancer Tooling
1.747 Hub - GM
1
1
1
1
1
851200
852020
852030
852040
852011
Hub adapter with O-rings
298 Late 30 spline shaft
298 Early 27 spline shaft
245 RWD 27 spline shaft
700R4, 4L60E 30 spline shaft

1.790 Hub - GM 245mm FWD
1
1
851220
852050
Hub Adapter with O-rings
27 Spline shaft

1.875 Hub - GM - Chrysler
1
1
1
1
1
851210
852000
852010
852100
852110
Hub adapter with O-rings
T-400 30 spline shaft
T-350 30 spline shaft
727/618 LU 23 spline shaft
727 24 spline shaft

1.875 Hub -GM - Chrysler (Optional)
1
1
852120
852060
727 10 Spline Shaft
Powerglide 17 Spline Shaft

1.998 Hub - GM
1
1
851221
852070
Hub adapter with O-rings
4L80E

2.294 Hub - GM, Allison
1
1
851230
852080
Hub adapter with O-rings
Allison 1000 Shaft

1.500 Hub - Chrysler
1
1
1
1
1
851240
852130
852140
852150
852160
Hub adapter with O-rings
904 LU 26 spline shaft
904 27 spline shaft
404 LU 22 spline shaft
404 23 spline shaft

1.610 Hub - Ford
1
1
851250
852250

Hub adapter with O-rings
A4LD / C3 21 spline shaft


1.575 Honda (optional)
1
1
851290
852400

Hub adapter with O-rings
Honda P8F, P8C, PW7, shaft


1.589 Honda (optional)
1
1
851300
852410

Hub adapter with O-rings
Honda Y4 shaft


For GM 300mm converters
To properly balance the 300mm GM converters, use the 852000 (30 spline T-400) shaft and 851200 (1.750) hub adapter together
1.997 Hub - Ford
1
1
1
1
1
851260
852210
852220
852230
852240
Hub Adapter with O-rings
C4 26 spline shaft
C6 31 spline shaft
E40D 31 spline shaft
AOD / FIOD 35 spline shaft

1.997 Hub - Ford (Optional)
1 852200 C4 24 Spline Shaft

O-Ring & Weight Kit
1
1
1
1
1
1
1
6
6
6
6
6
6
6
2
1
850500
850510
850520
850530
850540
850550
850551
970300
970310
970320
970330
970340
970342
970190
959020
919060
5 Gram weight
10 Gram weight
15 Gram weight
20 Gram weight
25 Gram weight
30 Gram weight
100 Gram Calibration weight
1/8 x 1 1/2” ID O-ring
1/8 x 1 5/8” ID O-ring
1/8 x 1 3/4” ID O-ring
1/8 x 1 7/8” ID O-ring
1/8 x 2” ID O-ring
1/8 x 2 1/4” ID O-ring
.070 x 5/8” OD O-ring
1/2” x 1/2” shoulder bolts
Storage box

Bushings
1
1
1
1
1
850410C2B
850410C2SB
850410C3B
850410F1B
850410F2B
C-2B
C-2SB
C-3B
F-1B
F-2B
1
1
1
1
1
850410F3B
850410F4B
850410G2B
850410G3B
850410N1B
F-3B
F-4B
G-2B
G-3B
N-1B


Misc Components
1
1
1
4
1
1
1

1
850221*
850340*
850410C
851020
851100
856000
856010

990384
220V - 3 Phase - 3 wire wiring diagram
Fuse & power conditioning diagram
Bushing chart
Ford drive stud spacers
Shaft indexers
Chrysler 727-904 clutch adapter
GM 298 clutch adapter w/970340 O-ring
(Use with 852020 or 852030 shaft)
Spacers for use with 618 Chrysler
*Part numbers vary by wiring configurations
